Shop All Thermowells
Winters

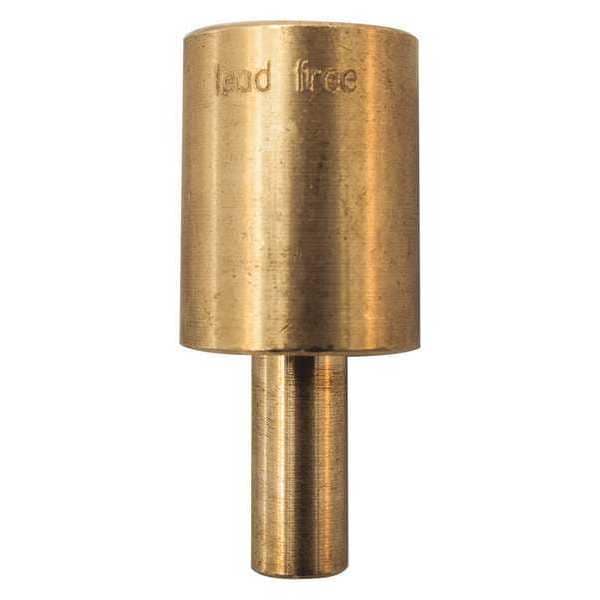

Thermowell, Stepped, 0.8 In Insrt Depth
Mfr # TSW85LF
Zoro # G7452611
product price: $10.99
/ea
$10.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Process Connection 1/2 in MNPT
- Insertion Length 51/64 in
- Material Brass
- Neck Extension 1 61/64 in
- Shank Dia. 0.35 in
Product Information
- Brand Winters
- MFR # TSW85LF
- Zoro # G7452611
- UPC # 628311002331
- Country of Origin China
- Category Thermowells
Dimensions
Insertion Length | 51/64 in |
Shank Dia. | 0.35 in |
Thread Size | 1/2 in |
For Stem Diameter | 9/32 in |
For Thermometer Thread Size | 1/2 in |
For Stem Length | 9/32 in |
Details
Item | Threaded Thermowell |
Process Connection | 1/2 in MNPT |
Material | Brass |
Neck Extension | 1 61/64 in |
NSF Certified | Yes |
For Thermometer Thread Type | NPT |
Maximum Operating Pressure | 710 psi |
Application | Boilers, Hot Water Lines, Potable Water Applications |
NSF Rated | Yes |
Thermowell Type | Threaded |
Food Safe | Yes |
Thread Gender | Male |
Includes Lagging | No |
Thread Type | NPT |
For Thermometer Thread Connection | 1/2 in NPT |
Shank Type | Straight |
Includes Cap and Chain | No |
Maximum Operating Temperature | 400 Degrees F/204 Degrees C |
Description
Threaded Thermowell, Brass, Shank Type Straight, 1/2 in MNPT, Insertion Length 51/64 in, For Stem Length 9/32 in, Neck Extension 1 61/64 in, Food Safe Yes
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
