Shop All End Mill Holders
Widia

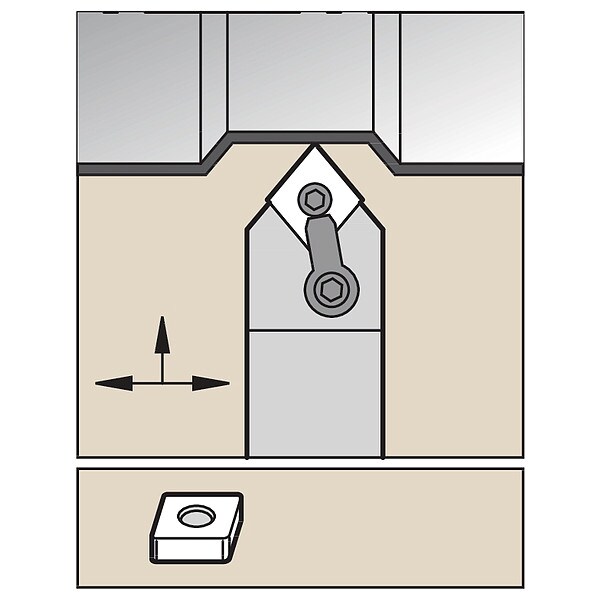

Toolholder, Inch Clamping System M
Mfr # MCMNN124B
Zoro # G3929780
product price: $90.79
/ea
Free Shipping & Returns
$90.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cutting Length 0.5077"
- Number of Inserts Required 1
- Coolant Fed Non-Coolant Through
- Shank Square
- Dimension F (In.) 0.3748
Product Information
- Brand Widia
- MFR # MCMNN124B
- Zoro # G3929780
- UPC # 4021169573682
- Country of Origin United States
- Category End Mill Holders
Dimensions
Cutting Length | 0.5077" |
Dimension F (In.) | 0.3748 |
Shank Height | 3/4 in |
Shank Width | 3/4 in |
Details
Item | Toolholder |
Number of Inserts Required | 1 |
Coolant Fed | Non-Coolant Through |
Shank | Square |
Clamp | Top and Hole Clamping |
Insert Shape | Diamond |
Rake | Negative (Zero) |
Material | Steel |
Left/Right Hand | Neutral |
Cutting Direction | Neutral |
Material - Machining | High Speed Steel |
Measurement System | Decimal Inch |
Lead Angle | 40 Degrees |
Description
Toolholder
Restrictions
- WARNING: Cancer For more information go to www.P65Warnings.ca.gov
