Widia

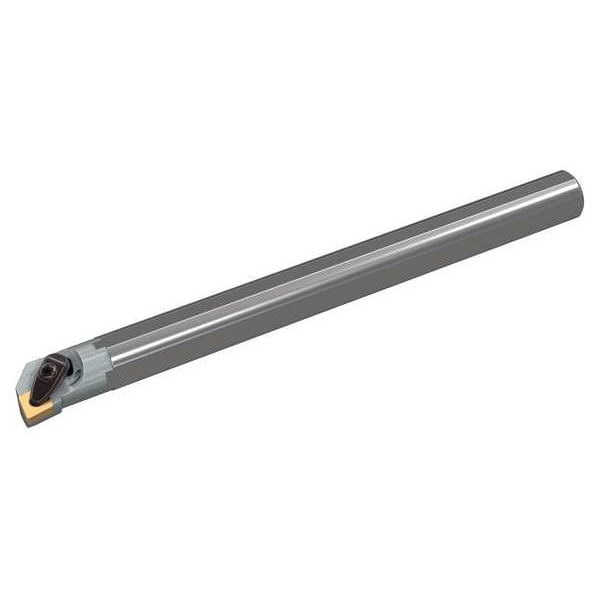

Thread Turning Toolholder, A16TDCLNR4KC3
Mfr # A16TDCLNR4KC3
Zoro # G3820115
Free Shipping & Returns
$348.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Insert Size 432
- Cutting Direction Right Hand
- ISO Number A16TDCLNR4KC3
- Rake -12 Degrees Radial, -5 Degrees Axial
- Cutting Dia. 1.0000"
Product Information
- Brand Widia
- MFR # A16TDCLNR4KC3
- Zoro # G3820115
- UPC # 4050841473286
- Country of Origin India
- Category Threading Inserts
Dimensions
Insert Size | 432 |
Cutting Dia. | 1.0000" |
Shank Dia. | 1 in |
Overall Length | 12 in |
Shank Length | 260.55mm |
Min. Bore Dia. | 30.48mm |
Insert Cutting Edge Length | 12.90mm |
Details
Item | Indexable Thread Turning Tool Holder |
Cutting Direction | Right Hand |
ISO Number | A16TDCLNR4KC3 |
Rake | -12 Degrees Radial, -5 Degrees Axial |
Insert Holding Type | Top Clamping |
Coolant Fed | Coolant Through |
Toolholder Style | A-DCLN-KC |
Cutting Application | Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling |
ANSI Code | A16TDCLNR4KC3 |
Shank Material | High Speed Steel |
Center to Cutting Tip | 0 in |
Number of Coolant Holes | 1 |
Insert Style | CN.. |
Measurement System | Fractional Inch |
Description
Indexable Thread Turning Tool Holder, Insert Style CN.., Right Hand, Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling, ANSI Code A16TDCLNR4KC3, Center to Cutting Tip 0 in, Coolant Fed Coolant Through
