Weg

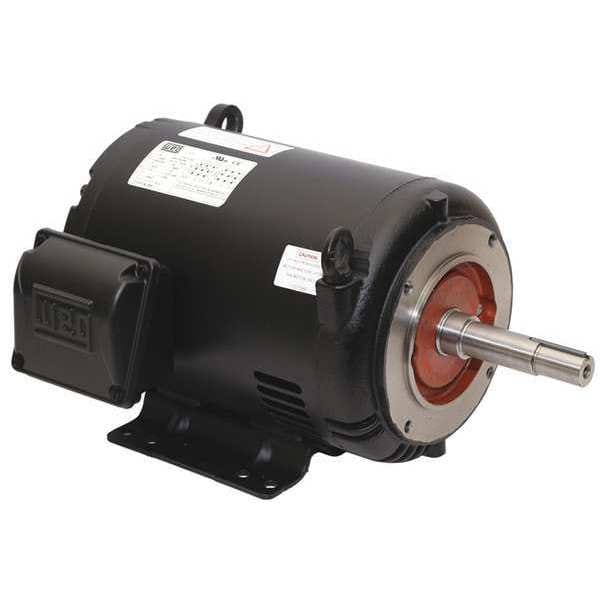

Close-Coupled Pump Motor, 2 HP, 14-1/8" L
Mfr # 00236OT3E145JM-S
Zoro # G7598276
product price: $477.99
/ea
Free Shipping & Returns
$477.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Motor Design 3-Phase
- HP 2
- RPM Range 3,001-3,600
- Nameplate RPM 3,510
- Voltage 208-230/460V AC
Product Information
- Brand Weg
- MFR # 00236OT3E145JM-S
- Zoro # G7598276
- Country of Origin Multiple
- Category Close-Coupled Pump Motors
Dimensions
Shaft Length | 4 1/8 in |
Overall Length | 14 1/8 in |
Length Less Shaft | 9 13/16 in |
Shaft Dia. | 7/8 in |
Body Dia. | 6.6 in |
Manufacturers Warranty Length | 3 yr |
Height | 6 3/4 in |
Bolt Circle Dia. | 5 7/8 in |
Description
Close-Coupled Pump Motor, Body Dia. 6.6 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 143/5JM, Hz 60 Hz, Full Load Amps 3.3-3.0/1.5.0, Height 6 3/4 in, HP 2, HP @ 50Hz 2, Includes Base, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 9 13/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
