Watts

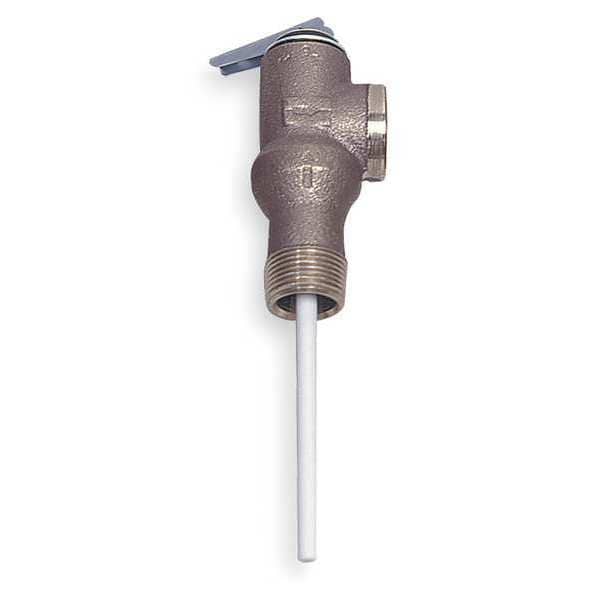

T and P Relief Valve, 3/4 In. Outlet
Mfr # LLL100XL
Zoro # G3017883
original price:
$36.97
21% off
$28.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Inlet Size 3/4"
- Outlet Size 3/4"
- Body Material Bronze
- Outlet Type FNPT
- Inlet Type MNPT
Product Information
- Brand Watts
- MFR # LLL100XL
- Zoro # G3017883
- UPC # 098268338010
- Country of Origin United States
- Category Relief Valves
Dimensions
Inlet Size | 3/4" |
Outlet Size | 3/4" |
Body Width | 1 3/4 in |
Body Height | 5 1/4 in |
Shank Length | Extended |
Thermostat Length | 2 1/8 in |
Overall Height | 7-3/4" |
Overall Width | 1-3/4" |
Height | 7-3/4" |
Width | 1-3/4" |
Details
Body Material | Bronze |
Item | Temperature and Pressure Relief Valve |
Outlet Type | FNPT |
Inlet Type | MNPT |
BtuH | 105,000 |
Factory Set Pressure | 150 psi |
Standards | ANSI Z21.22 and ASME Section, CSA Listed, IV Rated |
Max. Temp. | 210 Degrees F |
Auto Re-Seating | No |
Spring Material | Stainless Steel |
Type | Residential |
Description
Temperature and Pressure Relief Valve, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Thermostat Length 2 1/8 in, Body Height 5 1/4 in, 105,000 BtuH, Factory Set Pressure 150 psi, Max. Temp. 210 Degrees F, Shank Length Extended, Auto Re-Seating No, Body Material Bronze, Spring Material Stainless Steel, Body Width 1 3/4 in, Standards ANSI Z21.22 and ASME Section, CSA Listed, IV Rated
