Watts

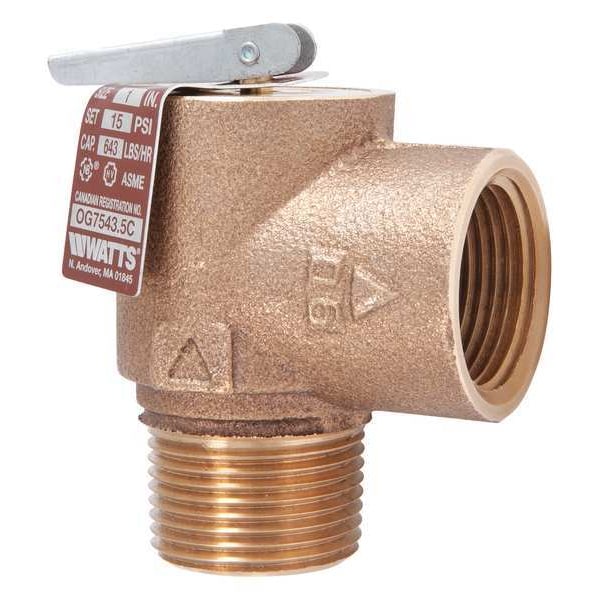

Steam Safety Relief Valve, 3-1/8 in.
Mfr # 0006277
Zoro # G0064946
product price: $144.99
/ea
Free Shipping & Returns
$144.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Inlet Size 1"
- Outlet Size 1"
- Body Material Bronze
- Outlet Type FNPT
- Inlet Type MNPT
Product Information
- Brand Watts
- MFR # 0006277
- Zoro # G0064946
- Country of Origin United States
- Category Relief Valves
Dimensions
| Inlet Size | 1" |
| Outlet Size | 1" |
| Overall Length | 2 3/8 in |
| Overall Height | 3 1/8 in |
Details
| Body Material | Bronze |
| Item | Steam Safety Relief Valve |
| Outlet Type | FNPT |
| Inlet Type | MNPT |
| Compliance | ASME and HV, NB |
| Factory Set Pressure | 15 psi |
| Disc Material | Non-Stick PTFE |
| Application | Steam Boiler |
| Test Lever | Yes |
| Spring Material | Stainless Steel |
| Steam Capacity (Lb./Hr.) | 643 |
| Seat Material | Metal |
| Temp. Range | 250 Degrees F |
Description
Steam Safety Relief Valve, Body Material Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1 in, Outlet Size 1 in, Factory Set Pressure 15 psi, Steam Capacity (Lb./Hr.) 643 lb/hr, Disc Material Non-Stick PTFE, Overall Height 3 1/8 in, Application Steam Boiler, Overall Length 2 3/8 in, Seat Material Metal, Spring Material Stainless Steel, Temp. Range 250 Degrees F, Test Lever Yes, Compliance ASME and HV, NB
Restrictions
- WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- *** This is a restricted item. It cannot be used in the USA for potable water applications.
