Warner Electric

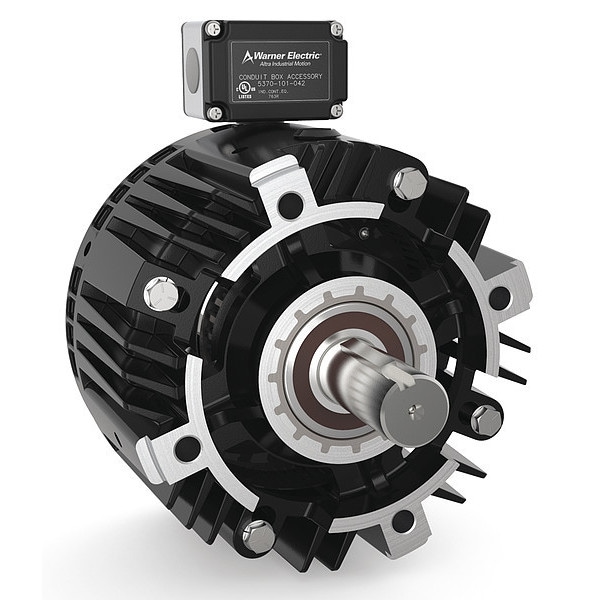

C-Face Clutch, Torque 95 Ft-Lb, 90 DC
Mfr # UM215-1040
Zoro # G2523211
product price: $3,699.99
/ea
Free Shipping & Returns
$3,699.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type C-Face
- For Use With NEMA C-Face Motor/Reducer
- Shaft Dia. (In.) 1 3/8 in
- Length (In.) 9.375 in
- Width (In.) 10 in
Product Information
- Brand Warner Electric
- MFR # UM215-1040
- Zoro # G2523211
- Country of Origin United States
- Category Brakes and Clutches
Dimensions
Shaft Dia. (In.) | 1 3/8 in |
Length (In.) | 9.375 in |
Width (In.) | 10 in |
Power Lead Length (In.) | 30 |
Overall Length | 9.38 in |
Overall Width | 10 in |
Shaft Diameter | 1 3/8 in |
Lead Length | 30 in |
Description
Clutch, Clutch/Brake Type C-Face, Coil Voltage 90V DC, Operating Voltage 90V DC, Enclosure Type Vented, Static Torque 95 ft-lb, Motor Frame Designation 213TC NEMA, Shaft Diameter 1 3/8 in, Maximum Speed 3,600 RPM, Mounting Location NEMA C-Face Motor or Between Motor and Reducer, For Use With NEMA C-Face Motor/Reducer, Includes Mounting Hardware, Lead Length 30 in, Overall Length 9.38 in, Overall Width 10 in, Phase -, Service Factor -, Standards CSA Certified, UL Listed, Application -, Converts -
