Shop All Ball Valves
Vne

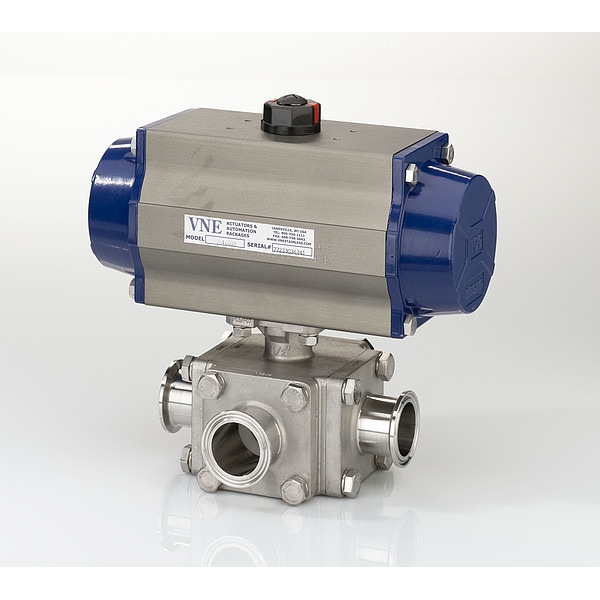

Pneumatic Ball Valve, Pipe Size 3/4
Mfr # 93CT.75C/63-5S1-XX
Zoro # G708363152
product price: $626.99
/ea
Free Shipping & Returns
$626.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Size 3/4 in
- Body Material 316 Stainless Steel
- Body Style Three-Way
- Seat Material PTFE
- Seal Material PTFE
Product Information
- Brand Vne
- MFR # 93CT.75C/63-5S1-XX
- Zoro # G708363152
- Country of Origin Taiwan, Province of China
- Category Ball Valves
Dimensions
Pipe Size | 3/4 in |
Inlet Connection Size | 3/4 in |
Nominal Valve Size | 3/4 in |
Description
Pneumatically Actuated Three-Way Ball Valve, Actuator Operation Air to Spring, Valve Deactivated State Normally Closed (NC), Included Pilot Solenoid Not Applicable, Fail Safe Position Fail Closed, Body Material 316 Stainless Steel, Valve Construction Three-Piece, Ball Port Style Full Port, Flow Pattern T Flow, Nominal Valve Size 3/4 in, Maximum Pressure - Operating 1,000 psi, Maximum Operating Pressure Differential 120 psi, Maximum Pressure - Steam 60 psi, Inlet Connection Entry Side
Restrictions
