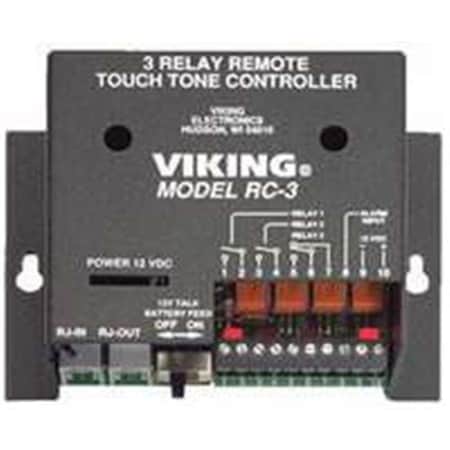

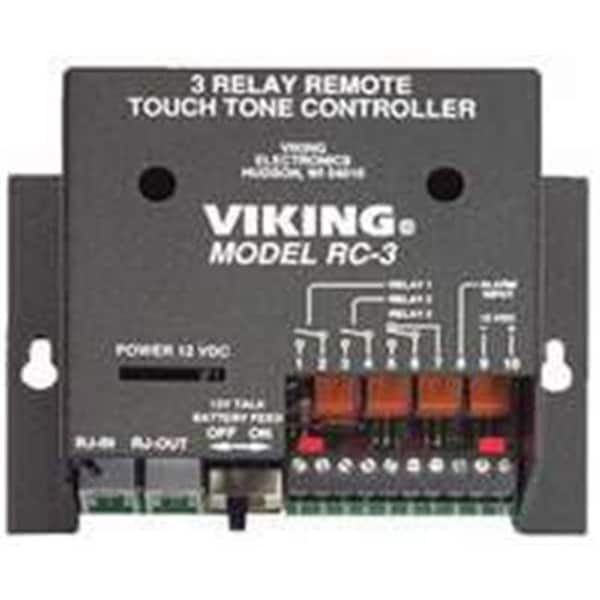

Viking Electronics RC-3 Viking 3 output controller

The RC-3 enables a standard Touch Tone phone to control up to 3 maintained ON maintained OFF or momentary relay contacts from a remote location. The RC-3 is fully user programmable and uses non-volatile E2 memory.
Up to three RC-3’s can be daisy chained on the same line to control up to nine relays.
The RC-3 features switchable 12V talk battery allowing easy installation on the trunk port. In addition the unit can be connected directly to a C.O. line or analog PABX/KSU station.
The RC-3 also features a built in pulse dialer activated by a contact closure from an alarm system temperature sensor etc. The RC-3 will dial the number up to three times sending alert tones indicating an emergency.

Remote Control of: High security building entry systems.

Door strikes and gates in conjunction with doorboxes (W-1000 etc.).

Signs lights cameras sprinklers motors.

Other contact controlled equipment.

Can also be used as an emergency dialer for alarm systems etc.

User Touch Tone programmable.

Non-volatile E2 memory.

12 digit alarm activated pulse dialer.

6 digit security code (to access programming).

6 digit access code (disable or enable for additional control security).

Switchable 12V talk battery.

Relay interrogation tones.

Programmable relay time delays.

Cascade up to three RC-3’s to control up to nine relays.

Programmable ring delay before answering.

Status LED’s for relays 1 2 3 and the answer relay.

One power adaptor can power up to three units.

Power: 120V AC/12V DC 500mA UL listed adapter provided.

Dimensions: 133mm x 89mm x 44mm (5.25” x 3.5” x 1.75”).

Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity.

Pulse Dialing Speed: 10 pps.

Talk Battery Output: 12V DC minimum (15V nominal).

Relay contact ratings: .5A 125V AC/1A 30V DC.

On hook time between alarm dialing: 2.5 seconds.

Connections: (2) RJ11 jacks 10 position screw terminal strip.
