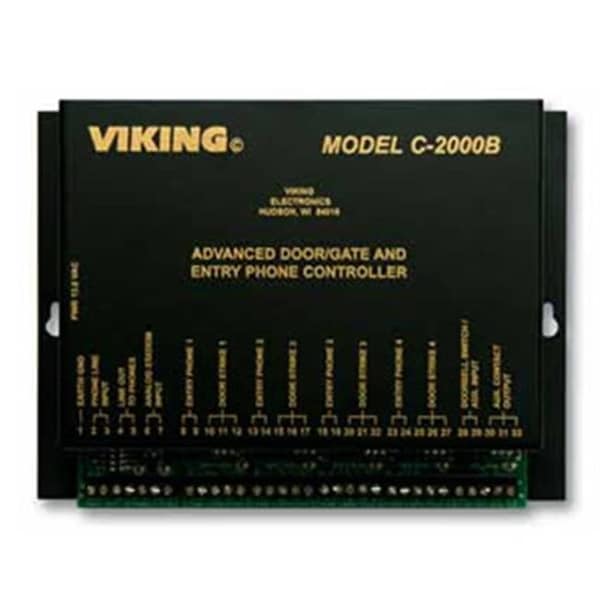

Viking Electronics VK-C-2000B Viking C-2000B Door Entry Controller

- Viking advanced door/gate entry phone controller
- Allows 1-4 entry phones to share a single telephone line with a residential or business telephone system
- Use with any analog touch tone phone
- Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4
- Up to 6 different keyless entry codes / “one time use” keyless entry codes per entrance
- Up to 6 master keyless entry codes for use at any entrance
- Analog station mode allows the C-2000B to connect to an unused PABX station port
- Optional “Privacy Number” allows only selected visitors to call from an entry phone
- Provides “Caller ID” and “Call Waiting Caller ID”
- Produces “Call Waiting” tones
- Lighted doorbell switch input to activate entry phone call
- One set of normally open and normally closed contacts available for each entry phone
- Programmable contact activation time
- Auxiliary input to activate timed auxiliary contacts
- Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
- Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
- Relay Contacts: 5A @ 30VDC/250VAC
- Ring Output: 8 REN, capable of ringing (16) 0.5 REN phones
- Talk Battery: 40V DC
- REN: 0.1A
- Connections: (30) cage clamp screw terminals VKC2000B
