Shop All 1-Phase Blower Motors
U.S. Motors

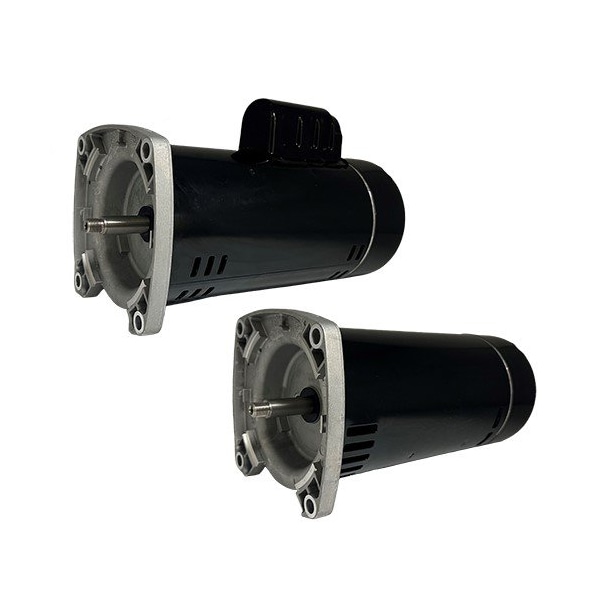

Motor, 1/2 HP, 48Y Frame, Single Phase
Mfr # JS0502-2V
Zoro # G1929631
product price: $255.99
/ea
Free Shipping & Returns
$255.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Shaft Dia. 5/8 in
- Motor Shaft Rotation CCW
- Full Load Amps 8.4/4.2
- Phase Single
- Voltage 115/230V AC
Product Information
- Brand U.S. Motors
- MFR # JS0502-2V
- Zoro # G1929631
- UPC # 786382038229
- Country of Origin Mexico
- Category 1-Phase Blower Motors
Dimensions
Shaft Dia. | 5/8 in |
Body Dia. | 6.5 in |
Overall Length | 11 11/16 in |
Bolt Circle Dia. | 7/16 in |
Description
Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 7/16 in, Duty Cycle Continuous, Frame 48Y, Hz 60, Full Load Amps 8.4/4.2, HP 1/2, Ins. Class B, Inverter Rated No, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 11.8/5.9 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Ratings & Reviews
3 Reasons You Can Count On Us
Supplies for every job.
10 million items and the exact one you need.
When you need it fast, count on Zoro!
2 million products ship in 1 day.
Stretch your budget further.
Everyday low prices on the brands you love.
