Tsubaki

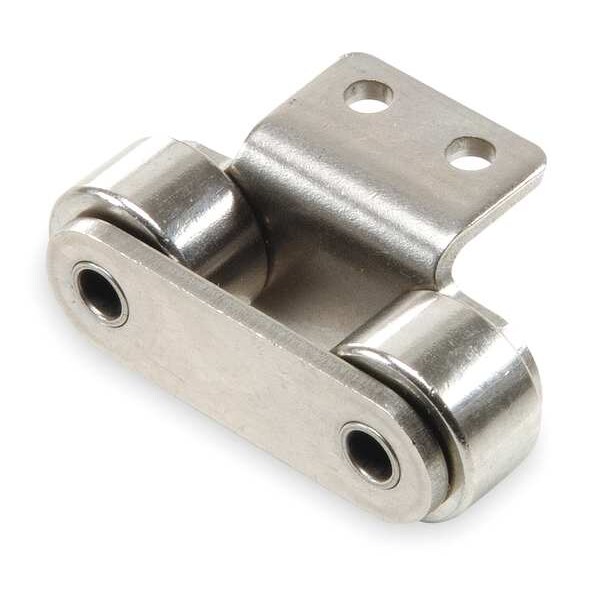

Roller Link, Double Pitch

product price: $78.75
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type A-2 Heavy Conveyor
  • Industry Chain Size C2082H
  • Chain Link Material 600 Stainless Steel
  • Industry Chain Pitch 2 in
  • Number of Strands Single
See all product information

Product Information

Dimensions

Industry Chain Size C2082H
Chain Link Overall Width 1.543 in
Chain Roller Dia. 1.125 in
Outside Pin Dia. (In.) 0.312
Pin Length 1.543 in
Length (In.) 2.000
Inside Pin Dia. 0.312 in
Width Between Roller Link Plates 0.625 in
Roller Link Plate Height (In.) 0.906
Pin Length (In.) 1.543
Width Between Roller Link Plates (In.) 0.625
ANSI Chain Size C2082HAS
Roller Link Plate Height 0.906 in
Roller Dia. (In.) 1.125
Outside Pin Dia. 0.312 in
Overall Width (In.) 1.543
Roller Diameter 1 1/8 in
Chain Overall Width 1.543 in
Extended Pin Diameter 0.312 in
Plate Height 0.906 in

Description

Roller Attachment Link, Attachment Number A-2, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.543 in, Chain Number C2082H, Roller Diameter 1 1/8 in, Finish Plain, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
