Shop All Keyless Bushings
Tsubaki

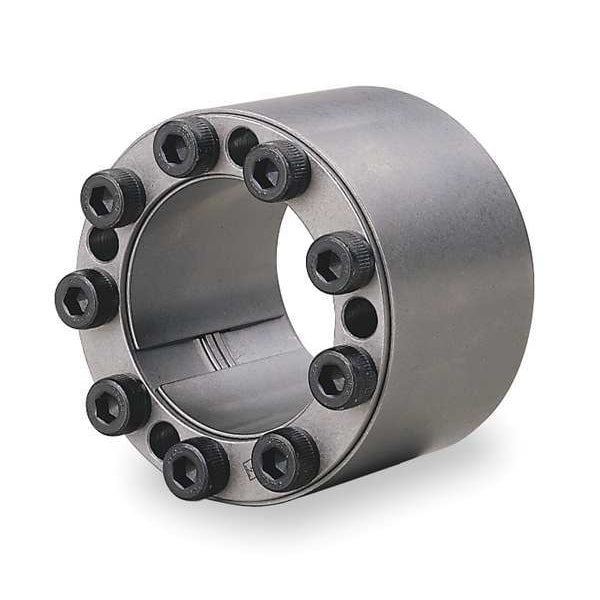

Power Lock(R), Dia 1.500 In
Mfr # PL1H
Zoro # G2375116
product price: $71.79
/ea
$71.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Keyless Bushing Type Multi-Screw Locking Assembly
- Keyless Bushing Series AS
- For Shaft Dia. - Bushings 1 1/2 in
- Outside Dia. (In.) 2.559
- Overall Length 0.787 in
Product Information
- Brand Tsubaki
- MFR # PL1H
- Zoro # G2375116
- Country of Origin China
- Category Keyless Bushings
Dimensions
For Shaft Dia. - Bushings | 1 1/2 in |
Outside Dia. (In.) | 2.559 |
Overall Length | 0.787 in |
Shaft Dia. Tolerance | -0.0015 in |
Shaft Dia. (In.) | 1.5000 |
Bolt Size | M6 x 18 |
Overall Length (In.) | 0.7870 |
Outside Dia. | 2.559 in |
Outside Dia. Tolerance | +0.0015 in |
Outside Diameter | 2 35/64 in |
For Bore Diameter | 1 1/2 in |
Overall Width | 0.787 in |
Outside Diameter Tolerance | +0.0015 in |
Screw Thread Size | M6 x 18 |
Description
Keyless Bushing, Flange Type Not Applicable, For Bore Diameter 1 1/2 in, Keyless Bushing Type Multi-Screw Locking Assembly, Material Carbon Steel, Outside Diameter 2 35/64 in, Overall Width 0.787 in, System of Measurement Inch, Hub Contact Pressure 15,500 psi, Maximum Transmitted Torque 658 ft-lb, Outside Diameter Tolerance +0.0015 in
Restrictions
- WARNING: Cancer For more information go to www.P65Warnings.ca.gov
