Tsubaki

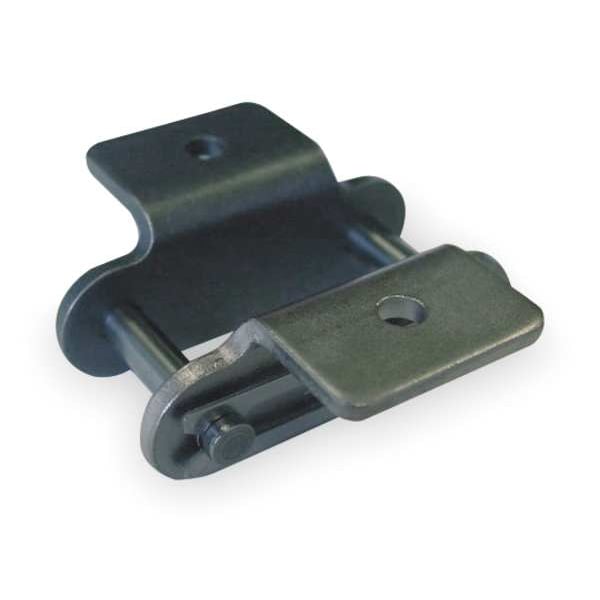

Connecting Roller Link, K-1 Attachment

product price: $8.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type K-1 Heavy Conveyor
  • Industry Chain Size C2060H
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1 1/2 in
  • Number of Strands Single
See all product information

Product Information

Dimensions

Industry Chain Size C2060H
Chain Link Overall Width 1.225 in
Chain Roller Dia. 0.469 in
Width Between Roller Link Plates 0.5 in
Width Between Roller Link Plates (In.) 0.500
Overall Width (In.) 1.225
Inside Pin Dia. 0.234 in
Outside Pin Dia. 0.234 in
Roller Link Plate Height 0.713 in
ANSI Chain Size C2060H
Length (In.) 1.500
Roller Dia. (In.) 0.469
Outside Pin Dia. (In.) 0.234
Pin Length (In.) 1.225
Roller Link Plate Height (In.) 0.713
Pin Length 1.225 in
Chain Overall Width 1.225 in
Extended Pin Diameter 0.234 in
Plate Height 0.713 in
Roller Diameter 15/32 in

Description

Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
