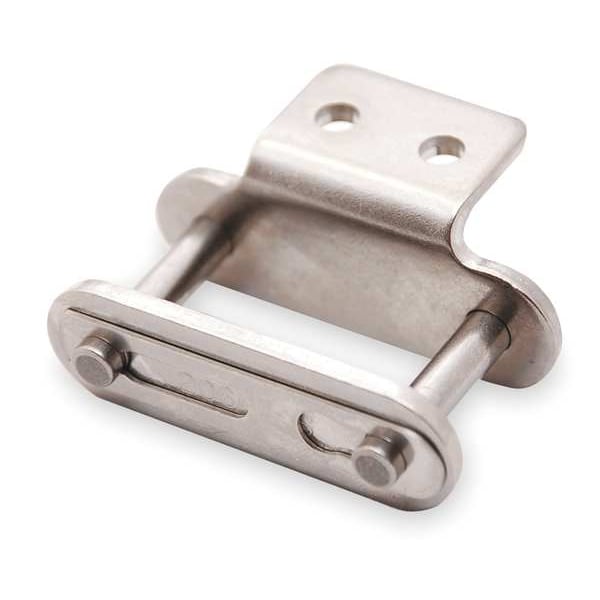

Connecting Roller Link, A-2 Attachment

Mfr # C2040ASA2CL
Zoro # G2597183

$13.95

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Roller Chain Link Type A-2 Conveyor
Industry Chain Size C2040
Chain Link Material 600 Stainless Steel
Industry Chain Pitch 1 in
Number of Strands Single

See all product information

Product Information

Brand Tsubaki
MFR # C2040ASA2CL
Zoro # G2597183
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	C2040
Chain Link Overall Width	0.717 in
Chain Roller Dia.	0.312 in
Outside Pin Dia.	0.156 in
Roller Link Plate Height	0.472 in
Roller Link Plate Height (In.)	0.472
ANSI Chain Size	C2040AS
Roller Dia. (In.)	0.312
Overall Width (In.)	0.717
Width Between Roller Link Plates	0.312 in
Pin Length	0.705 in
Inside Pin Dia.	0.156 in
Length (In.)	1.000
Pin Length (In.)	0.705
Width Between Roller Link Plates (In.)	0.312
Outside Pin Dia. (In.)	0.156
Plate Height	0.472 in
Tab Width	0.752 in
Inside Width	19/64 in
Roller Diameter	19/64 in
Chain Overall Width	0.717 in
Tab Hole Diameter	0.142 in

Details

Roller Chain Link Item	Attachment Link
Roller Chain Link Type	A-2 Conveyor
Chain Link Material	600 Stainless Steel
Industry Chain Pitch	1 in
Number of Strands	Single
Connecting End to Center Line (In.)	0.380
Lubrication	SAE 10 to SAE 50
Rivet End to Center Line (In.)	0.325
Pin Link Plate Thickness (In.)	0.060
Item	Attachment Link
Pin Type	Riveted
Rivet End to Center Line	0.325 in
Max. Allowable Load	150 lb
Pitch	1 in
Connecting End to Center Line	0.38 in
Temp. Range	-40 Degrees to 750 Degrees F
Type	A-2 Attachment
Material	Stainless Steel
Agency Compliance	American National Standards Institute (ANSI)
Pin Link Plate Thickness	0.06 in
Max. Allowable Load (Lb.)	150
Finish	Plain
Tab Hole Center to Center	0.374 in
Plate Thickness	0.06 in
Material Grade	600
Attachment Number	A-2
Heavy Series	No
Centerline to Attachment End	0.76 in
Centerline to Hole Center	0.5 in
Maximum Operating Temperature	750 Degrees F
Attachment Type	Tab
Attachment Location	One Side
Working Load Limit	595 lb
Standards	ANSI
Minimum Operating Temperature	-40 Degrees F
Pin Contruction	Riveted Pin
Chain Construction	Riveted Pin
Tab Orientation	Horizontal Outward
Link Type	Attachment Link
Chain Number	C2040
Pitch Type	Double Pitch
Number of Tab Holes	2

Description

Attachment Link, Attachment Number A-2, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.717 in, Chain Number C2040, Roller Diameter 19/64 in, Finish Plain, Pitch 1 in, Link Type Attachment, Attachment Location One Side, Centerline to Attachment End 0.76 in, Centerline to Hole Center 0.5 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Heavy Series No, Inside Width 19/64 in, Lubrication SAE 10 to SAE 50, Material Grade 600
