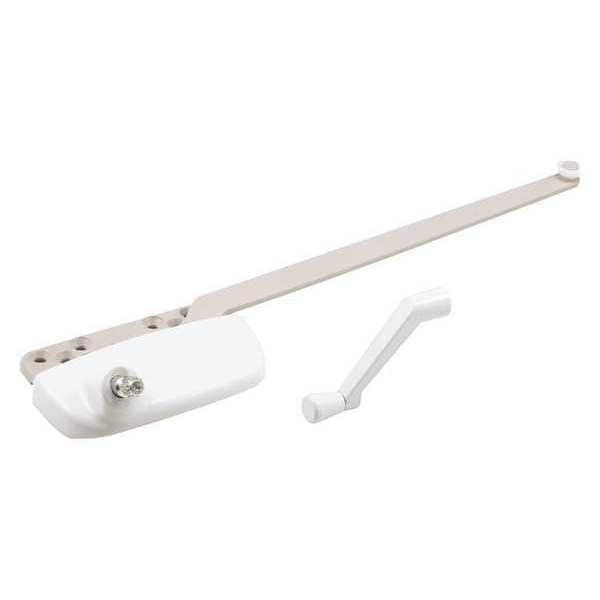

Casement Operator, 13-1/2 in., Diecast, White, Right Hand, Ellipse (Single Pack)
Mfr # TH 24199
Zoro # G0599197
Key Features
- Finish White
- Material Die Cast
- Length (In.) 13-1/2 in.
- Height (In.) 19 1/4 in
- Base Size (In.) 4-39/64
Product Information
- Brand True Hardware
- MFR # TH 24199
- Zoro # G0599197
- UPC # 49793241993
- Country of Origin United States
- Category Window Operators & Covers
Dimensions
Length (In.) | 13-1/2 in. |
Height (In.) | 19 1/4 in |
Base Size (In.) | 4-39/64 |
Width (In.) | 4-57/64 |
Details
Finish | White |
Material | Die Cast |
Strike (In.) | 11-3/8 |
Projection (In.) | 11/16 in |
Type | Casement Window |
Item | Right Hand Window Operator |
Color | White |
Hardware | Included |
Includes | Mounting Hardware |
Description
This Ellipse single arm casement operator is constructed of a diecast body, a hardened steel arm (with a steel guide button at 9/16 inch in diameter), and a case-hardened worm gear mechanism that comes in a corrosion-resistant coating. It features a contoured-edge housing and an operator crank handle that come finished in a white colored baked-on enamel finish. This casement operator is right-handed, determined when viewing the window from the outside looking inch Operator is a surface-mounted crank-out design for casement windows and mounts with six fasteners. This high-end quality operator exhibits minimal gear lash, with positive and smooth operation. Installation fasteners and a set screw (for affixing the crank handle onto the operator spindle) are included with each operator. This operator provides a full 90-degree opening and disconnects easily from the sash.
- •Used to replace worn or missing ellipse casement operators (right hand)
- •13-1/2 inch arm
- •White colored finish
- •Diecast housing with steel link arms
- •The handing for this Truth casement operator is determined by viewing the operator from the OUTSIDE LOOKING IN
- •Please refer to the line art drawing and compare with your original item before purchasing
