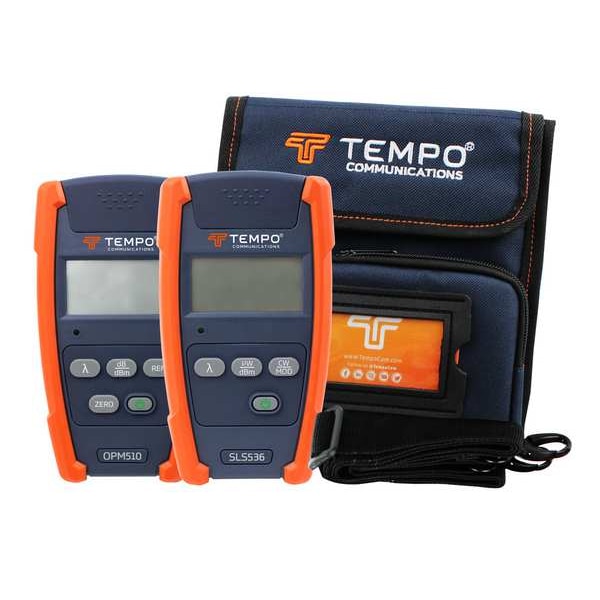

Light Source Power Meter Kit

product price: $2,754.94
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Fiber Measurement and Testing
  • Display LCD
  • For Use With TEMPO COMMUNICATIONS OPTICAL POWER METER AND STABILIZED LIGHT SOURCE KIT
  • Measures 1300 nm Wavelength, 1310 nm Wavelength, 1490 nm Wavelength, 1550 nm Wavelength, 1625 nm Wavelength, 1650 nm Wavelength, 850 nm Wavelength
  • Features 270Hz, 1KHz and 2KHz Tone, Dual and Triple Lasers Available, Out of Band Testing at 1625 nm and 1650 nm, PC Flat Polish Interface
See all product information

Product Information

Dimensions

Maximum Wavelength Measurement 1,650 nm
Minimum Cable Length 6 ft
Battery Size 9V
Manufacturer Warranty Length Limited
Minimum Wavelength Measurement 1,310 nm

Details

Item Light Source Power Meter Kit
Application Fiber Measurement and Testing
Display LCD
For Use With TEMPO COMMUNICATIONS OPTICAL POWER METER AND STABILIZED LIGHT SOURCE KIT
Measures 1300 nm Wavelength, 1310 nm Wavelength, 1490 nm Wavelength, 1550 nm Wavelength, 1625 nm Wavelength, 1650 nm Wavelength, 850 nm Wavelength
Features 270Hz, 1KHz and 2KHz Tone, Dual and Triple Lasers Available, Out of Band Testing at 1625 nm and 1650 nm, PC Flat Polish Interface
Connector Type FC, LC, ST
Includes Certificate of Conformance, SC/PC Adapter, Carrying Case
Adapter Type SC/PC
Standards 21 CFR 1040.10, CE, FCC
Waterproof No
Product Type Light Source Power Meter Kit
Battery Chemistry Alkaline, Lithium
Maximum Operating Humidity 95 %
IP Rating IP54
Display Type Digital
Display Screen Type LCD
Testing Functions Optical Power Measuring
Maximum Operating Temperature 122 Degrees F
Dustproof Yes
Maximum Power Measurement 10 dBm
Auto Power Off Yes
Minimum Operating Temperature 14 Degrees F
Fault Location Pulse Duration 6 msec
Fiber Mode Measured Multi-Mode, Single-Mode
Minimum Power Measurement -65 dBm
Includes Batteries Yes
Number of Batteries Required 1
Adapters Included PC, SC

Description

Light Source Power Meter Kit, Connector Type FC, LC, ST, Adapters Included PC, SC, Fault Location Pulse Duration 6 msec, Fiber Mode Measured Multi-Mode, Single-Mode, IP Rating IP54, Product Type Light Source Power Meter Kit, Testing Functions Optical Power Measuring, Auto Power Off Yes, Battery Chemistry Alkaline, Lithium, Battery Size 9V, Display Screen Type LCD, Display Type Digital, Dustproof Yes
