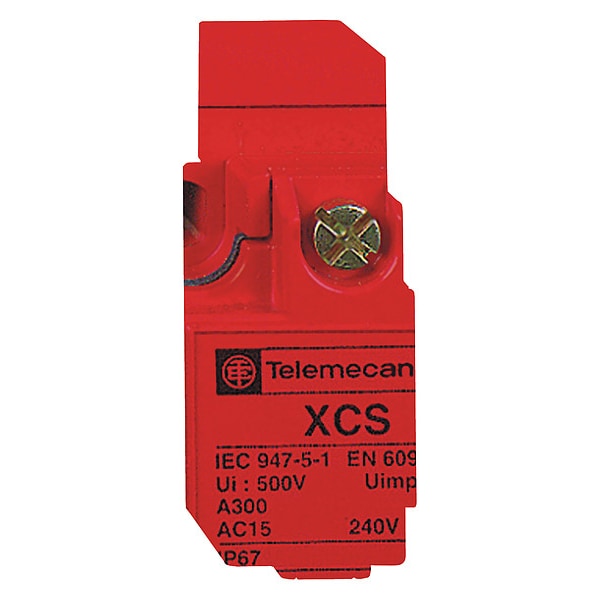

Safety Interlock 300Vac 10A Txcs

Name: Safety Interlock 300Vac 10A Txcs
Brand: Telemecanique Sensors
SKU: G0560309
Price: 131.99 USD
Availability: InStock

$167.45

21% off

$131.99

/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Product Information

Cable Outer Diameter

9-12 mm

Item	Safety Interlock Switch
Series	XCSA
Cable Entry	1 entry tapped Pg 13.5
Electrical Shock Protection Class	class I EN/IEC 61140
Protective Treatment	TC
Local Signalling	without
Design	industrial
Ambient Air Temperature For Operation	-25-70Â°C
Contact Operation	slow-break, break before make
Contacts Type And Composition	2 NC + 1 NO
Positive Opening	with NC contact
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Maximum Actuation Speed	0.5 m/s
Safety Level	can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
[Ithe] Conventional Enclosed Thermal Current	10A
Minimum Actuation Speed	0.01 m/s
Product Certifications	CSA \|\| UL
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 VEN/IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Ambient Air Temperature For Storage	-40-70Â°C
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-5-1
Maximum Operating Rate	10 cyc/mn for maximum durability
[Ie] Rated Operational Current	6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 \|\| 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Component Name	XCSA
Minimum Actuator Force For Extraction	20 N
Number Of Poles	3
Product Or Component Type	safety switch
Ip Degree Of Protection	IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Actuator Material	Metal
