Shop All Coupling Inserts
Tb Woods

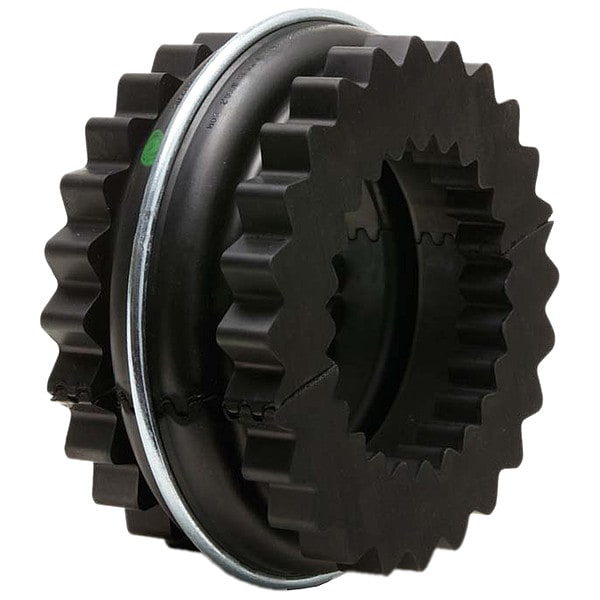

Sure-Flex Sleeve Coupling Insert, 11N, Neoprene

product price: $278.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size - Sleeve Couplings 11
  • Flange Type - Sleeve Couplings N
  • Insert Design - Couplings Two-Piece with Retaining Ring
  • Material - Inserts Neoprene
  • Rated Torque 5,890 in-lb
See all product information

Product Information

Dimensions

Size - Sleeve Couplings 11
Outside Dia. 8.19 in
Width 4.0 in
Outside Diameter 8 3/16 in
Coupling Size 11
Insert Width 4 in

Description

Sleeve Coupling Insert, Coupling Size 11, Maximum Speed 3,600 RPM, Maximum Torque 5,890 in-lb, Outside Diameter 8 3/16 in, Insert Construction 2-Piece with Retaining Ring, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 9.4 hp, Insert Material Neoprene, Insert Width 4 in, Parallel Misalignment 0.032 in, System of Measurement Inch, Torsional Stiffness 17,300 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 200 Degrees F
