Shop All Jaw Type Couplings
Tb Woods

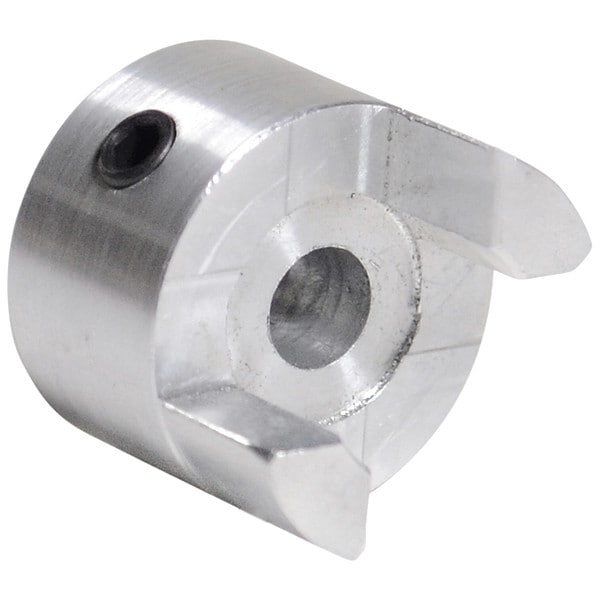

L-Jaw Coupling Hub, AL070, Aluminum, 3/4"
Mfr # AL07034
Zoro # G3276725
product price: $7.85
/ea
$7.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Size - Jaw Couplings AL070
- Keyway Size Type 3/16 in x 3/32 in
- Material - Hubs Aluminum
- Outside Dia. 1.36 in
- Assembled Coupling Length 2 in
Product Information
- Brand Tb Woods
- MFR # AL07034
- Zoro # G3276725
- UPC # 698672036917
- Country of Origin United States
- Category Jaw Type Couplings
Dimensions
Size - Jaw Couplings | AL070 |
Bore Dia. | 3/4 in |
Keyway Size Type | 3/16 in x 3/32 in |
Outside Dia. | 1.36 in |
Assembled Coupling Length | 2 in |
Size | AL070 |
Overall Length | 1.98 in |
Keyway Size | 3/16" x 3/32" |
Coupling Size | L070 |
Screw Thread Size | 1/4"-20 NC |
Keyway Width | 3/16 in |
Coupling Overall Length | 2 in |
Length through Bore | 0.8 in |
Keyway Depth | 3/32 in |
Bore Diameter | 3/4 in |
Outside Diameter | 1 23/64 in |
Maximum Bore Diameter | 3/4 in |
Hub Diameter | 1 23/64 in |
Description
Jaw Coupling Hub, Coupling Size L070, Outside Diameter 1 23/64 in, Coupling Overall Length 2 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.069 hp (Buna-N Spider), 0.1 hp (Urethane Spider), 0.18 hp (Hytrel Spider), Keyway Depth 3/32 in, Keyway Width 3/16 in, Bore Diameter 3/4 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L070H, L070N, L070U
