Supco

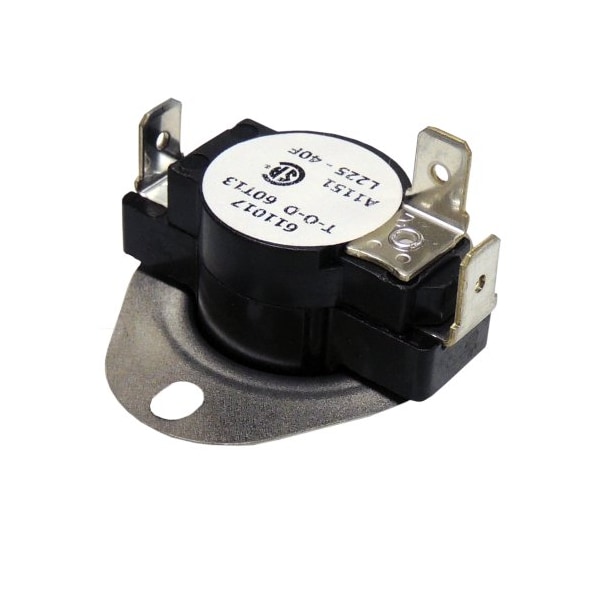

Snap Disc From Supco

product price: $7.19
/ea
Sold in multiples of 2 for $14.38
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Switch Action Open and Close on Rise
  • Application Limit Control with Fan Bypass
  • Overall Width 1 5/8 in
  • Standards CSA Certified, UL Listed
  • Pilot Contact Rating 125 VA
See all product information

Product Information

Dimensions

Overall Width 1 5/8 in
Mounting Base Length 2 in
Terminal Size 1/4 in
Mounting Base Width 1 5/8 in

Details

Item Temperature Limit Controller
Switch Action Open and Close on Rise
Application Limit Control with Fan Bypass
Standards CSA Certified, UL Listed
Pilot Contact Rating 125 VA
Resistive Amps @ 240V AC 25 A
Contact Rating (AC) 10 A @ 120V AC, 30 A @ 240V AC, 5 A @ 240V AC, 60 A @ 120V AC
Contact Form SPDT
Reset Type Automatic Reset
Resistive Amps @ 120V AC 25 A
Input Voltage 240V AC
Wire Connections Quick Connect
Mounting Surface Mount
Mounting Hole Center to Center Distance 1 5/8 in
Switch Closing Temperature 185 Degrees F
Switch Opening Temperature 225 Degrees F
Product Type Temperature Limit Controller
Series LD
Temperature Differential 40 Degrees F

Description

Temperature Limit Controller, Application Limit Control with Fan Bypass, Mounting Surface Mount, Contact Form SPDT, Switch Action Open and Close on Rise, Reset Type Automatic Reset, Switch Closing Temperature 185 Degrees F, Switch Opening Temperature 225 Degrees F, Input Voltage 240V AC, Mounting Base Length 2 in, Mounting Base Width 1 5/8 in, Product Type Temperature Limit Controller, Temperature Differential 40 Degrees F, Mounting Hole Center to Center Distance 1 5/8 in, Overall Width 1 5/8 in
