Shop All Control Relays
Square D

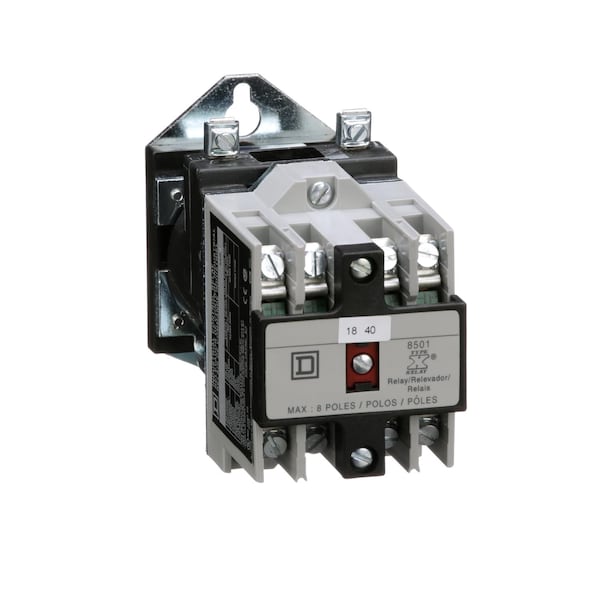

Relay 600Vac 10Amp Nema +Options
Mfr # 8501XDO40V62
Zoro # G0847117
product price: $324.99
/ea
Free Shipping & Returns
$324.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 600VAC
- Depth 5.17 in
- Height 3.56 in
- Width 2.23 in
- Relay Type control
Product Information
- Brand Square D
- MFR # 8501XDO40V62
- Zoro # G0847117
- UPC # 785901548737
- Country of Origin Mexico
- Category Control Relays
Dimensions
Depth | 5.17 in |
Height | 3.56 in |
Width | 2.23 in |
Details
Coil Volts | 600VAC |
Item | Relay 600Vac 10Amp Nema +Options |
Relay Type | control |
Line Rated Current | 10 A AC || 5 A DC |
Product Or Component Type | relay |
Control Circuit Voltage Limits | operational 0.8...1.1 Uc DC |
Electrical Connection | screw clamp terminals |
Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 |
[Uc] Control Circuit Voltage | 115/125 V DC |
Operating Time | 37 ms - pick-up || 21 ms - drop-out |
Inrush Power In W | 18 W |
Product Certifications | CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR |
[Icm] Rated Short-Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 |
Awg Gauge | AWG 18...AWG 12 copper |
Mounting Support | panel |
Ambient Air Temperature For Operation | -40-160°F |
Hold-In Power Consumption In W | 18-18 W |
Contacts Type And Composition | 4 NO 4 standard contact cartridges |
Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
Description
Relay 600Vac 10Amp Nema +Options
