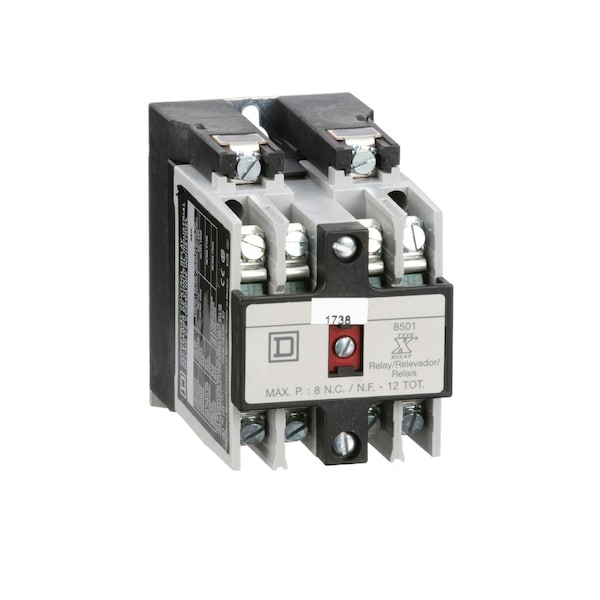

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil
Mfr # 8501XO40V02Y414
Zoro # G5526203
Free Shipping & Returns
$207.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Width 2.23 in
- Depth 3.95 in
- Height 3.5 in
- Line Rated Current 10 A AC || 5 A DC
- Control Circuit Voltage Limits operational 0.85...1.1 Uc AC 50/60 Hz
Product Information
- Brand Square D
- MFR # 8501XO40V02Y414
- Zoro # G5526203
- UPC # 785901549031
- Country of Origin Mexico
- Category Control Relays
Dimensions
Width | 2.23 in |
Depth | 3.95 in |
Height | 3.5 in |
Details
Item | NEMA Control Relay,machine tool,4 NO, |
Line Rated Current | 10 A AC || 5 A DC |
Control Circuit Voltage Limits | operational 0.85...1.1 Uc AC 50/60 Hz |
Product Certifications | UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03 |
Product Or Component Type | relay |
[Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
Hold-In Power Consumption In Va | 23-23 VA 60 Hz || 25-25 VA 50 Hz |
Mounting Support | panel |
Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
Operating Time | 15 ms - pick-up || 16 ms - drop-out |
[Icm] Rated Short-Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 |
Inrush Power In Va | 148-148 VA 60 Hz || 143-143 VA 50 Hz |
Relay Type | control |
Contacts Type And Composition | 4 NO 4 standard contact cartridges |
Awg Gauge | AWG 18...AWG 12 copper |
Ambient Air Temperature For Operation | -40-160°F |
Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 |
Electrical Connection | ring tongue |
Range of Product | 8501X |
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
