Shop All Control Relays
Square D

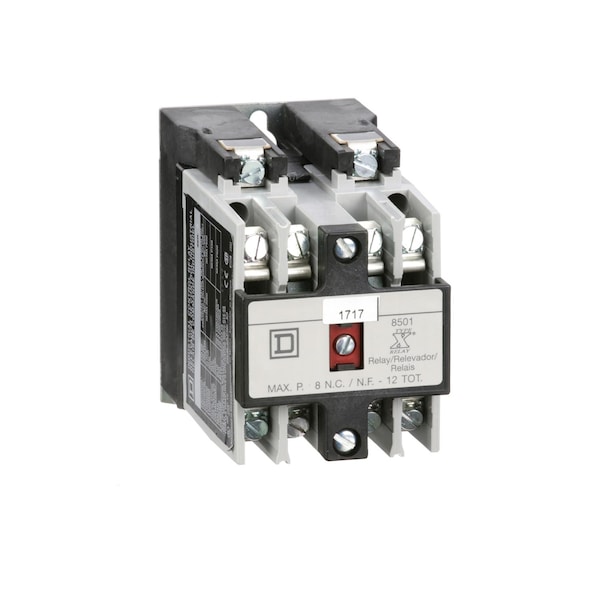

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 0 normally open contacts, 110/120 VAC 50/60 Hz coil
Mfr # 8501XO00V02
Zoro # G0844335
product price: $114.99
/ea
Free Shipping & Returns
$114.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 600VAC
- Width 2.23 in
- Depth 3.95 in
- Height 3.5 in
- Awg Gauge AWG 18...AWG 12 copper
Product Information
- Brand Square D
- MFR # 8501XO00V02
- Zoro # G0844335
- UPC # 785901536925
- Country of Origin Mexico
- Category Control Relays
Dimensions
Width | 2.23 in |
Depth | 3.95 in |
Height | 3.5 in |
Details
Coil Volts | 600VAC |
Item | Relay 600Vac 10Amp Nema +Options |
Awg Gauge | AWG 18...AWG 12 copper |
Mounting Support | panel |
Hold-In Power Consumption In Va | 23-23 VA 60 Hz || 25-25 VA 50 Hz |
Line Rated Current | 10 A AC || 5 A DC |
Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 |
Contacts Type And Composition | without |
Ambient Air Temperature For Operation | -40-160°F |
Inrush Power In Va | 148-148 VA 60 Hz || 143-143 VA 50 Hz |
Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
[Icm] Rated Short-Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 |
Product Certifications | UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03 |
Product Or Component Type | relay |
[Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
Electrical Connection | screw clamp terminals |
Control Circuit Voltage Limits | operational 0.85...1.1 Uc AC 50/60 Hz |
Operating Time | 15 ms - pick-up || 16 ms - drop-out |
Relay Type | control |
Range of Product | 8501X |
Description
Relay 600Vac 10Amp Nema +Options
