Square D

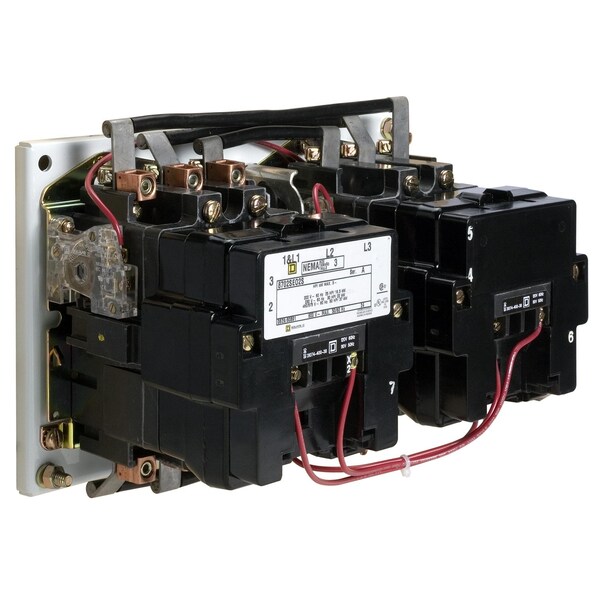

NEMA Contactor, Type S, reversing, horizontal, Size 4, 135A, 100HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open style
Mfr # 8702SFO3V02S
Zoro # G200422388
original price:
$8,256.53
12% off
new price: $7,184.99
/ea
Free Shipping & Returns
$7,184.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Width 361.95 mm
- Height 296.93 mm
- Depth 177.8 mm
- Nema Size 4
- Poles Description 3P
Product Information
- Brand Square D
- MFR # 8702SFO3V02S
- Zoro # G200422388
- Country of Origin Mexico
- Category Overload Relays
Dimensions
Width | 361.95 mm |
Height | 296.93 mm |
Depth | 177.8 mm |
Nema Size | 4 |
Details
Item | Reversing Contactor,Size 4,3-Pole,Hor |
Poles Description | 3P |
Condition Of Use | horizontal |
Nema Degree Of Protection | not rated (open device) |
Electrical Connection | screw clamp terminals |
Product Certifications | UL Listed || CSA |
Control Circuit | separate control circuit |
Line Rated Current | 135 A |
Control Type | no control units |
Contactor Application | reversing |
Rated Power In Hp | 40 HP 200 V AC || 50 HP 230 V AC || 100 HP 460 V AC || 100 HP 575 V AC |
Wiring Mode | 3 wires |
Product Or Component Type | contactor |
Phase | 3 phase |
[Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
Local Signalling | no indicator |
[Ue] Rated Operational Voltage | 600 V AC |
Range of Product | type S |
Provided Equipment | fuse not supplied |
Description
Square D 8702SFO3V02S reversing magnetic contactor, NEMA Size 4, 135 amperes maximum at 600 VAC, 3 pole, with 110/120 VAC, 50/60 Hz operating coil, open style. UL Listed, CSA Certified, CE Marked, Inductive and resistive ratings, variety of operating coil voltages, replaceable coils and contacts, variety of enclosure. S and field addable accessories available. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
