Shop All Panelboards, Load Centers, & Circuit Breaker Enclosures
Square D

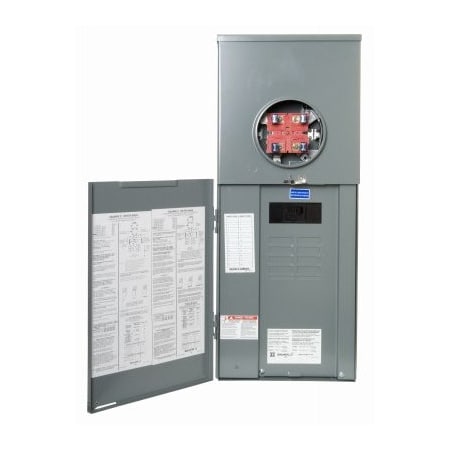

Meter Main, RC, 8 Spaces, 200A, Main Lug, 1 Phase
Mfr # RC816F200C
Zoro # G907066809
product price: $369.99
/ea
Free Shipping & Returns
$369.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug Main Lug
- Phase 1
- Short Circuit Current Rating 22kA
- Height 35.13 in
- Width 14.37 in
Product Information
- Brand Square D
- MFR # RC816F200C
- Zoro # G907066809
- UPC # 785901863922
- Country of Origin United States
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
| Height | 35.13 in |
| Width | 14.37 in |
| Depth | 5.07 in |
| Wire Size | AWG 6...350 kcmil aluminium/copper)line side || AWG 12...AWG 2/0 aluminium/copper)service ground |
Details
| Item | Meter Main |
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 8 |
| Amps | 200A |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Series | RC |
| Circuit Breaker Type | Homeline |
| Mounting Style | surface |
| Max. No. of Tandem Breakers | 8 |
| Standards | UL E-6294 |
| Meter Socket Type | ringless |
| Tightening Torque | main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium || Cover 10 lb.in |
| Bypass Type | no bypass |
| Service Disconnect Rated Current | 200 A |
| Electrical Connection | lugs line side || feed-thru lugs service ground |
| Hub type | A |
| Number Of Circuits | 16 |
| Ground Bar Kit | service disconnect (factory installed) |
