Square D

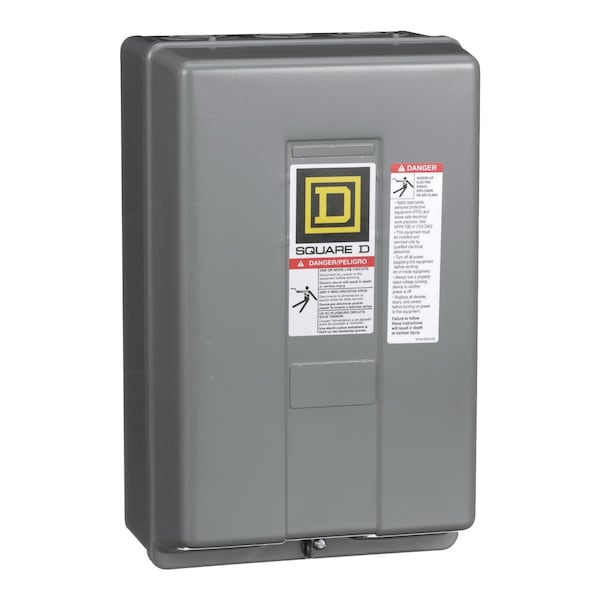

Contactor, Type S, multipole lighting, electrically held, 60A, 3 pole, 110/120VAC 50/60Hz coil, NEMA 1
Mfr # 8903SPG2V02
Zoro # G0847491
product price: $736.99
/ea
Free Shipping & Returns
$736.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Full Load Amps 60
- Number of Poles 3
- Coil Volts 600VAC
- Height 12.69 in
- Width 7.81 in
Product Information
- Brand Square D
- MFR # 8903SPG2V02
- Zoro # G0847491
- UPC # 785901619499
- Country of Origin Mexico
- Category Lighting Contactors
Dimensions
Height | 12.69 in |
Width | 7.81 in |
Depth | 6.03 in |
Details
Item | Lighting Contactor 600Vac 60A Nema |
Full Load Amps | 60 |
Number of Poles | 3 |
Coil Volts | 600VAC |
Hz | 60/50 Hz |
Enclosure NEMA Rating | NEMA 1 |
Standards | UL Listed; CSA |
Current Rating | 60 A |
Electrical Connections | Lugs |
Control Type | No control units |
Pilot Light | No |
Auxiliary Contact Composition | without |
Poles Description | 3P |
[Uc] Control Circuit Voltage | 120 V AC 60 Hz, 110 V AC 50 Hz |
Range of Product | S |
Product or Component Type | Electrically Held Lighting Contactor |
Nema Degree of Protection | NEMA 1 painted sheet steel surface none |
Local Signalling | without pilot light |
Description
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 60 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
