Square D

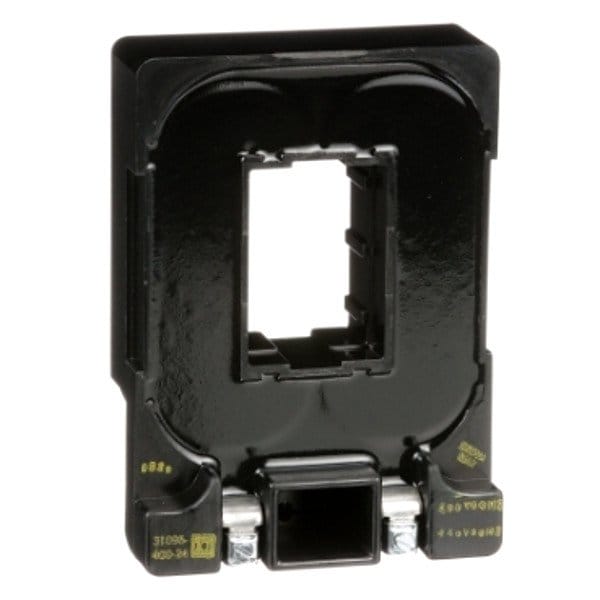

Coil, Magnetic, 480vac
Mfr # 3109640024
Zoro # G0675771
product price: $470.99
/ea
Free Shipping & Returns
$470.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- For Use With SG and SX
- Coil Volts 480V AC
- Starter Size 5
- VA Rating 2970
- Hz 60
Product Information
- Brand Square D
- MFR # 3109640024
- Zoro # G0675771
- UPC # 785901326939
- Country of Origin Mexico
- Category Replacement Coils
Dimensions
Starter Size | 5 |
Depth | 45.3 mm |
Width | 101.2 mm |
Height | 140.5 mm |
Nema Size | 5 |
NEMA Size | 5 |
Details
Item | Replacement Coil |
For Use With | SG and SX |
Coil Volts | 480V AC |
VA Rating | 2970 |
Hz | 60 |
Contactor Type | NEMA |
Average Consumption | 212 VA || 250 VA |
Accessory / Separate Part Destination | class 8502 type SG contactor || class 8903 type SY/SX lighting contactor || class 8910 type SYD368 (series A) contactor |
Inrush Power In Va | 2970 VA |
Product Or Component Type | coil |
[Ue] Rated Operational Voltage | 480 V AC 60 Hz || 440 V AC 50 Hz |
Contactor Style | NEMA |
Coil Voltage | 440/480V AC |
Frequency | 50/60 Hz |
Coil Power | 2,970 VA |
Compatible with Series | 8502 Type SG Contactors, 8903 Type SX Lighting Contactors, 8903 Type SY Lighting Contactors, 8910 Type SYD368 Series A Contactors |
Rated Operational Voltage | 480 V AC 60 Hz; 440 V AC 50 Hz |
Description
Replacement Coil, Coil Voltage 440/480V AC, NEMA Size 5, Compatible with Series 8502 Type SG Contactors, 8903 Type SX Lighting Contactors, 8903 Type SY Lighting Contactors, 8910 Type SYD368 Series A Contactors, Contactor Style NEMA, Coil Power 2,970 VA, Frame Size Not Applicable, Frequency 50/60 Hz
