Shop All Auxiliary Contacts
Square D

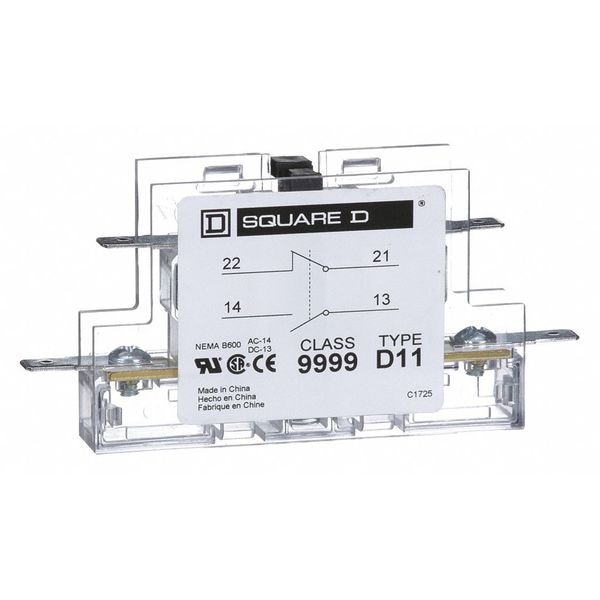

Auxiliary Contact, 1NO, 1NC
Mfr # 9999D11
Zoro # G2350817
product price: $29.99
/ea
$29.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of NO Aux. Contacts 1
- Number of NC Aux. Contacts 1
- Amps 5 A
- Mounting Screw
- For Use With Square D Type 8910 or 8911, DPA or DPS Definite Purpose Contactors, 30 to 90A
Product Information
- Brand Square D
- MFR # 9999D11
- Zoro # G2350817
- UPC # 785901080886
- Country of Origin China
- Category Auxiliary Contacts
Details
Item | Auxiliary Contact |
Number of NO Aux. Contacts | 1 |
Number of NC Aux. Contacts | 1 |
Amps | 5 A |
Mounting | Screw |
For Use With | Square D Type 8910 or 8911, DPA or DPS Definite Purpose Contactors, 30 to 90A |
Number of Contacts | 2 |
Voltage | 600 V AC |
Standards | CSA Approved, UL Recognized |
Features | Mercury Free |
Compatible with Series | 8910DPA Definite Purpose Contactors, 8911DPS Definite Purpose Starters, 8965 Reversing Hoist Contactors |
Maximum Voltage Rating | 600V AC |
Terminal Connection Type | Screw Terminals |
Number of Normally Open Contacts | 1 |
Current AC | 5 A |
Number of Normally Closed Contacts | 1 |
Component Type | Auxiliary Contact Module |
Auxiliary Contact Composition | 1 NO + 1 NC |
Rated Breaking Capacity | 3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 0.75 A 480 V AC inductive control circuit UL 508; 0.6 A 600 V AC inductive control circuit UL 508; 5 A Less than or Equal to 600 V AC resistive control circuit UL 508 |
Used With | contactor |
Product Certifications | UL Recognized; CSA |
Description
Auxiliary Contact, Current AC 5 A, Number of Contacts 2, Mounting Screw, Number of Normally Open Contacts 1, Maximum Voltage Rating 600V AC, Number of Normally Closed Contacts 1, Terminal Connection Type Screw Terminals, Compatible with Series 8910DPA Definite Purpose Contactors, 8911DPS Definite Purpose Starters, 8965 Reversing Hoist Contactors
