Speedaire

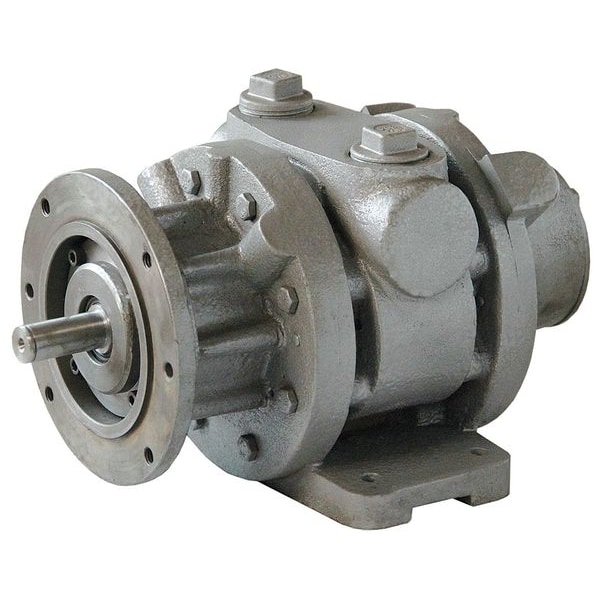

Air Motor, 9.5 HP, 280 cfm, 2000 rpm
Mfr # 22UX53
Zoro # G6089185
original price:
$883.62
14% off
new price: $757.99
/ea
Free Shipping & Returns
$757.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Running Torque @ Max. Pressure 290 in-lb
- Max. Air Flow 275 cfm
- HP 9.5 hp
- No Load RPM 2,000 RPM
- Shaft Dia. 7/8 in
Product Information
- Brand Speedaire
- MFR # 22UX53
- Zoro # G6089185
- UPC # 190735606377
- Country of Origin China
- Category Air Motors
Dimensions
Shaft Dia. | 7/8 in |
Port Size | 1-1/4 in NPT |
Overall Length | 13 5/8 in |
Overall Width | 8 in |
Overall Height | 7 1/4 in |
Keyway Length | 1 3/8 in |
Shaft Length | 2 1/8 in |
Outside Diameter | 7 1/4 in |
Keyway Width | 1/4 in |
Shaft Diameter | 7/8 in |
Inlet Size | 1 1/4 in |
Keyway Depth | 1/8 in |
Manufacturers Warranty Length | 1 yr |
Description
Air Motor, Output Power @ Maximum Speed 9.5 hp, Maximum Torque 290 in-lb, No Load Speed 2,000 RPM, Maximum Flow Rate 275 cfm, Shaft Diameter 7/8 in, Shaft Length 2 1/8 in, Mount Type Flange, Foot, Inlet Size 1 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/4 in, Weight 72.32 lb, Housing Material Grade Not Applicable
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
