Shop All Air Motors
Speedaire

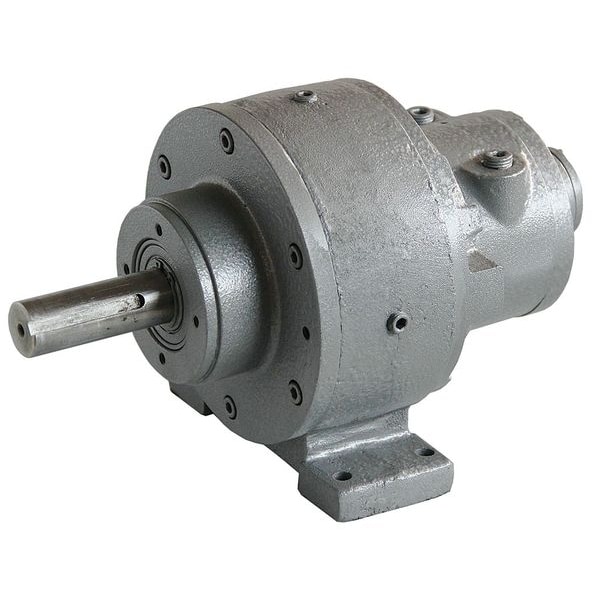

Air Gearmotor, 1.26 HP, 57.5 cfm, 300 rpm
Mfr # 22UX54
Zoro # G6152571
original price:
$720.71
6% off
new price: $670.99
/ea
Free Shipping & Returns
$670.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Running Torque @ Max. Pressure 274 in-lb
- HP 1.26 hp
- Max. Air Flow 57.5 cfm
- No Load RPM 300 RPM
- Shaft Dia. 1 in
Product Information
- Brand Speedaire
- MFR # 22UX54
- Zoro # G6152571
- UPC # 190735606384
- Country of Origin China
- Category Air Motors
Dimensions
Shaft Dia. | 1 in |
Port Size | 1/4 in NPT |
Overall Length | 11 11/16 in |
Overall Height | 6 5/8 in |
Shaft Length | 2 3/4 in |
Keyway Length | 2 1/4 in |
Overall Width | 6 1/8 in |
Length Less Shaft | 8 15/16 in |
Outside Diameter | 6 in |
Shaft Diameter | 1 in |
Manufacturers Warranty Length | 1 yr |
Keyway Depth | 1/8 in |
Inlet Size | 1/4 in |
Keyway Width | 1/4 in |
Description
Air Gearmotor, Output Power @ Maximum Speed 1.26 hp, Maximum Torque 274 in-lb, No Load Speed 300 RPM, Maximum Flow Rate 57.5 cfm, Shaft Diameter 1 in, Shaft Length 2 3/4 in, Mount Type Face, Foot, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Gear Ratio 10:1, Air Consumption 57.5 cfm, Housing Material Finish Painted, AGMA Gear Class Not Applicable, Air Inlet Center to Center Distance 2 1/2 in, Inlet Gender Female
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
