Shop All Vacuum Ejectors
Smc

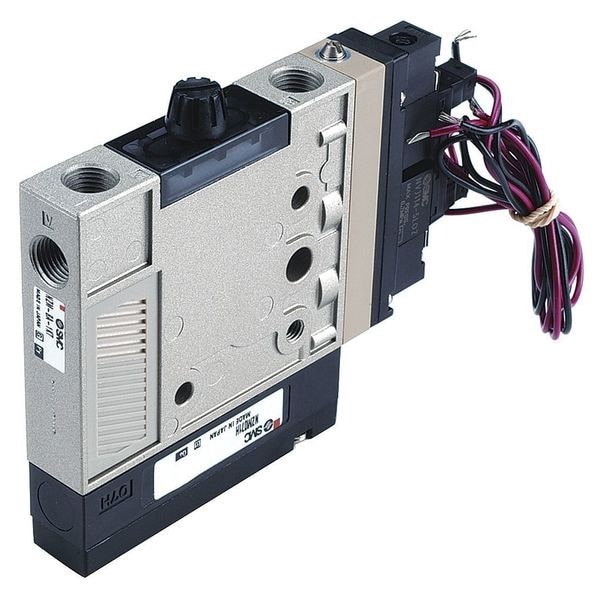

Vacuum Ejector, Single, 1/8 In NPT
Mfr # ZM101HT-K5LZ
Zoro # G4870171
product price: $201.99
/ea
Free Shipping & Returns
$201.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pressure Port Size 1/8 in
- Vacuum Port Size 1/8 in
- Exhaust Type Muffler
- Vacuum Flow Rate 36.0 lpm
- Supply Pressure Range 35 to 72 PSI
Product Information
- Brand Smc
- MFR # ZM101HT-K5LZ
- Zoro # G4870171
- Country of Origin Japan
- Category Vacuum Ejectors
Dimensions
Pressure Port Size | 1/8 in |
Vacuum Port Size | 1/8 in |
Orifice Dia. | 1.0 mm |
Width | 15.5 mm |
Height | 112 mm |
Length | 98 mm |
Overall Length | 98 mm |
Overall Width | 15.5 mm |
Description
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Release Valve, Supply Valve, Maximum Flow Rate 36 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 98 mm, Overall Width 15.5 mm, Pressure Port Size 1/8 in, Pressure Port Type NPT, Vacuum Port Size 1/8 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -50 kPa, Vacuum Pressure @ 75 PSI -84 kPa, Valve Supply Voltage 24 V DC, Valve Type 2 NC Supply and Release, Weight 250 g
