Shop All Solenoid Air Control Valves
Smc

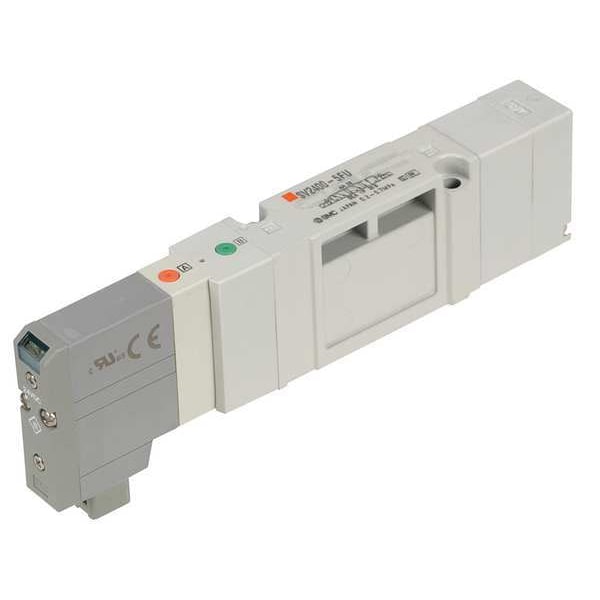

Solenoid Air Control Valve, 24VDC
Mfr # SV2500-5FU
Zoro # G5259161
product price: $106.99
/ea
Free Shipping & Returns
$106.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Valve Ways and Positions 5-Way/3-Position
- Voltage 24V DC
- Center Position Closed
- Valve Actuator / Return Solenoid / Spring
- Coefficient of Volume 0.46
Product Information
- Brand Smc
- MFR # SV2500-5FU
- Zoro # G5259161
- Country of Origin Japan
- Category Solenoid Air Control Valves
Dimensions
| Overall Height | 1 1/2 in |
| Overall Width | 3/4 in |
| Overall Length | 5 in |
Details
| Item | Solenoid Air Control Valve |
| Valve Ways and Positions | 5-Way/3-Position |
| Voltage | 24V DC |
| Center Position | Closed |
| Valve Actuator / Return | Solenoid / Spring |
| Coefficient of Volume | 0.46 |
| Max. CFM - Valves | 0.46 cfm |
| Operational Pressure Range | 30 to 100 psi |
| NEMA Classification | NEMA 6 |
| Shifting Technology | Solenoid |
| Pressure Range | 30 to 100 psi |
| Standards | CE, UR |
| Ambient Temp. Range | 14 Degrees to 122 Degrees F |
| Air Valve Type | 5-Way, 3-Position |
| Body Style | Body Ported |
| CFM | 0.46 |
| Electrical Connections | Plug-In |
| Power Consumption | 0.65 W |
| Pilot Pressure | 30 |
Description
Solenoid Air Control Valve, Valve Ways and Positions 5-Way/3-Position, Voltage 24V DC, Center Position Closed, Valve Actuator / Return Solenoid / Spring, Max. CFM - Valves 0.46 cfm, Operational Pressure Range 30 to 100 psi, NEMA Classification NEMA 6, Body Style Body Ported, Pilot Pressure 30, Coefficient of Volume 0.46, Plug-In Electrical Connections, Shifting Technology Solenoid, Power Consumption 0.65 W, Ambient Temp. Range 14 Degrees to 122 Degrees F, Overall Height 1 1/2 in
