Shop All Programmable Logic Controllers
Siemens

Module

product price: $2,011.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Width 140 millimetre
  • Depth 165 millimetre
  • Height 355 millimetre
  • Design of frequency changer U converter
  • Min. network voltage 380 volt
See all product information

Product Information

Dimensions

Width 140 millimetre
Depth 165 millimetre
Height 355 millimetre

Details

Design of frequency changer U converter
Min. network voltage 380 volt
Use in the industrial area permissible Yes
Relative symmetric mains voltage tolerance 10 percent
max. output power with square load at rated output voltage 11 kilowatt
Input phase number 3
Relative symmetric mains frequency tolerance 5 percent
Brake chopper integrated Yes
Power loss, static, current-independent [Pls] 18 watt
Output phases, number of 3
Max. output frequency 550 hertz
max. mains voltage 480 volt
Protection type IP IP20
Rated output current 26 ampere
max. output power with linear load and rated output voltage 8 kilowatt
Rated output voltage 400 volt
description of product type PM240-2

Description

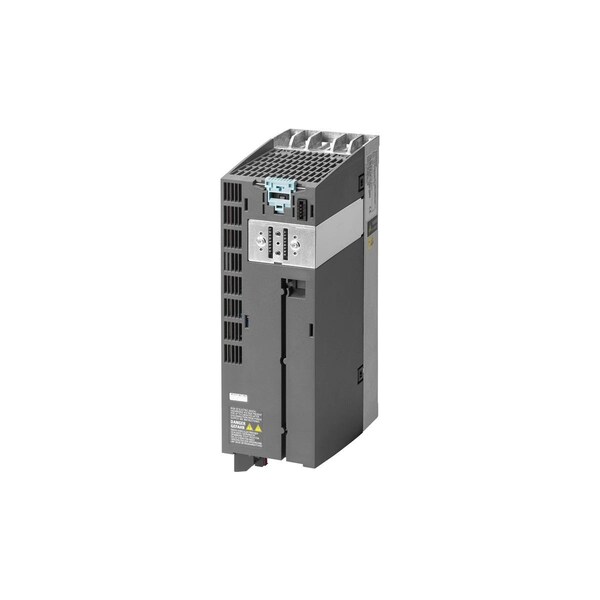

SINAMICS POWER PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 7,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 11KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 HXWXD, FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
