5 Inch Semi Steel Wheel Swivel Top Plate Caster Set with Brake
Mfr # SCC-20S515-SSR-TLB-4
Zoro # G005431127
product price: $220.99
/ea
Free Shipping & Returns
$220.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Wheel Dia. 5
- Wheel Width 1.5
- Capacity (Lb.) 300
- Caster Swivel Lock Type Top lock brake
- Material Semi Steel Cast Iron
Product Information
- Brand Service Caster
- MFR # SCC-20S515-SSR-TLB-4
- Zoro # G005431127
- UPC # 11586544703
- Country of Origin United States
- Category Plate Casters
Dimensions
Wheel Dia. | 5 |
Wheel Width | 1.5 |
Mounting Height | 6-1/8" |
Plate Size | 2-1/2" x 3-5/8" |
Size | 5" x 1-1/2" |
Bolt Size | 5/16" (hardware not included) |
Details
Capacity (Lb.) | 300 |
Caster Swivel Lock Type | Top lock brake |
Material | Semi Steel Cast Iron |
Series | Series #20 |
Finish | Bright Zinc Plated Finish |
Plate Caster Bolt Hole Pattern | 1-3/4" x 2-7/8" to 3" |
Caster Mounting Type | Top Plate |
Type | (4) swivel casters w/ top lock brakes |
Caster Temp. Range | -45 degrees F to 600 degrees F |
Features | Top lock brake |
Bearing Type | Roller Bearing |
Description

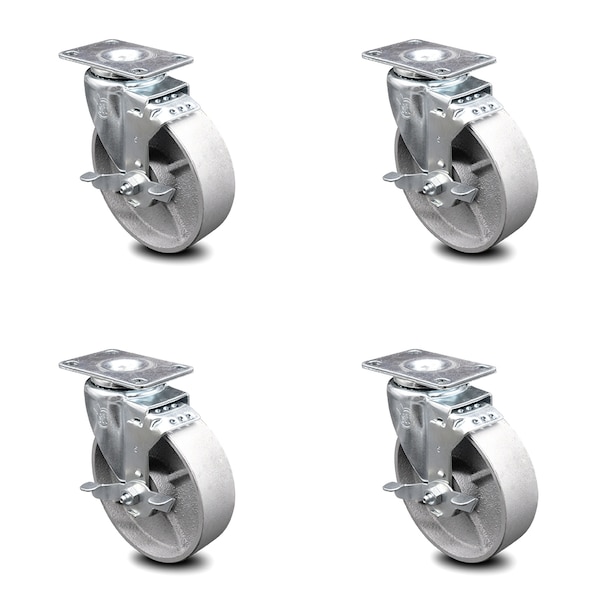

Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel casters with top lock brakes, 5” diameter by 1-1/2” wide semi steel cast iron wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
