Service Caster

5 Inch 316SS Solid Polyurethane Wheel Swivel Top Plate Caster Lock Brakes, 2PK


product price: $297.99
/pk 2, $149.00/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wheel Dia. 5
  • Wheel Width 1.25
  • Features 2 casters with total lock brakes
  • Capacity (Lb.) 1200
  • Caster Temp. Range -50 degrees F to 180 degrees F
See all product information

Product Information

Dimensions

Wheel Dia. 5
Wheel Width 1.25
Mounting Height 6-1/8"
Plate Size 2-1/2" x 3-5/8"
Bolt Size 5/16" (hardware not included)
Size 5" x 1-1/4"

Details

Features 2 casters with total lock brakes
Capacity (Lb.) 1200
Caster Temp. Range -50 degrees F to 180 degrees F
Caster Mounting Type Top Plate
Caster Swivel Lock Type 2 casters with total lock brakes
Durometer 60-65 D
Type (2) swivel casters w/total lock brakes & (2) swivel casters
Material Solid Polyurethane
Finish 316 Polished Stainless Steel
Plate Caster Bolt Hole Pattern 1-3/4" x 2-7/8" to 3"
Series Series #20
Bearing Type Plain Bore

Description

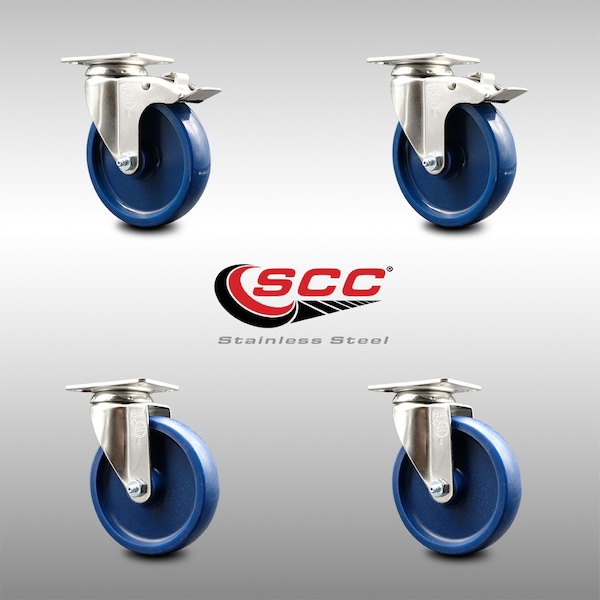

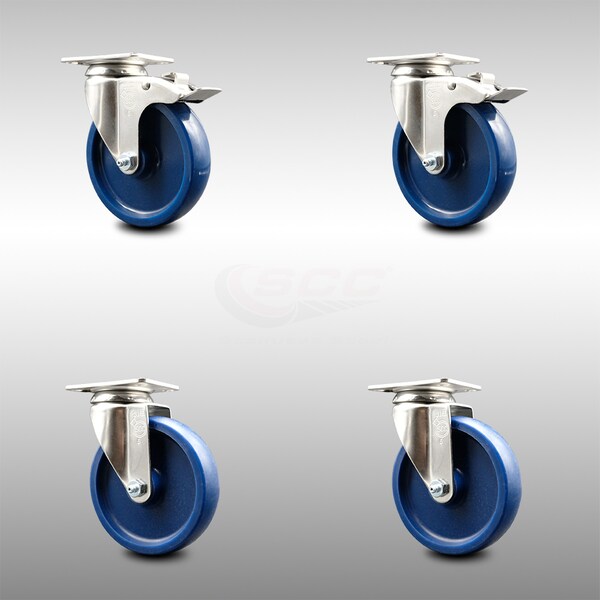

Listing is for a set of four (4) Service Caster Series #20 316 stainless steel casters, two (2) swivel total lock brake swivel casters and two (2) swivel casters, with 5” diameter by 1-1/4” wide blue solid polyurethane wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster's 316 stainless steel solid polyurethane wheel casters. Built with 316 stainless steel, which contains additional molybdenum and nickel content, makes this caster more corrosion resistant than standard 304 stainless steel. Molded as one solid piece, the non-marking, non-marring polyurethane wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment.
