  9. Cavity Pump, 1" Discharge, NPT, 341 gph
Shop All Progressive Cavity Pumps
Seepex

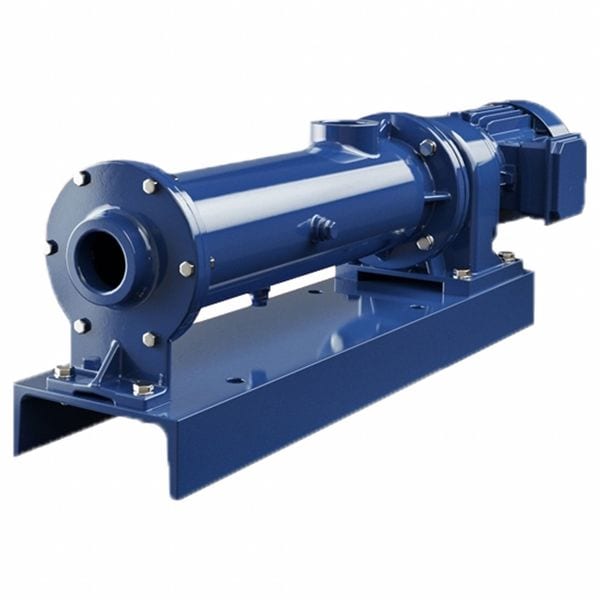

Cavity Pump, 1" Discharge, NPT, 341 gph

product price: $1,924.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Flow Rate (Maximum) 341 gph
  • Operating Pressure (Maximum) 60 psi
  • Flow Rate (Minimum) 20 gph
  • Horsepower (Maximum) 1 1/2 hp
  • Frequency 60 Hz
See all product information

Product Information

Dimensions

Solid Diameter (Maximum) 0.25 in
Discharge Connection Size 1 in
Intake Connection Size 1 in

Details

Item Cavity Pump
Flow Rate (Maximum) 341 gph
Operating Pressure (Maximum) 60 psi
Flow Rate (Minimum) 20 gph
Horsepower (Maximum) 1 1/2 hp
Frequency 60 Hz
Phase Single
Media Temperature (Maximum) 140 Degrees F
Pump Operation Type Motorized
Stator Material Viton
Discharge Connection Type NPT
Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline
Stator Movement Wobble
Intake Connection Type NPT
Viscosity (Maximum) 3,000 cps
Nameplate Voltage 120 V AC 1ph
Rotor Material Stainless Steel
Media Temperature (Minimum) 35 Degrees F

Description

Cavity Pump, Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Discharge Connection Size 1 in, Discharge Connection Type NPT, Flow Rate (Maximum) 341 gph, Flow Rate (Minimum) 20 gph, Horsepower (Maximum) 1 1/2 hp, Housing Material Stainless Steel, Intake Connection Size 1 in, Intake Connection Type NPT, Media Temperature (Maximum) 140 Degrees F, Media Temperature (Minimum) 35 Degrees F, Nameplate Voltage 120 V AC 1ph
