Shop All Pillow Block Bearings
Sealmaster

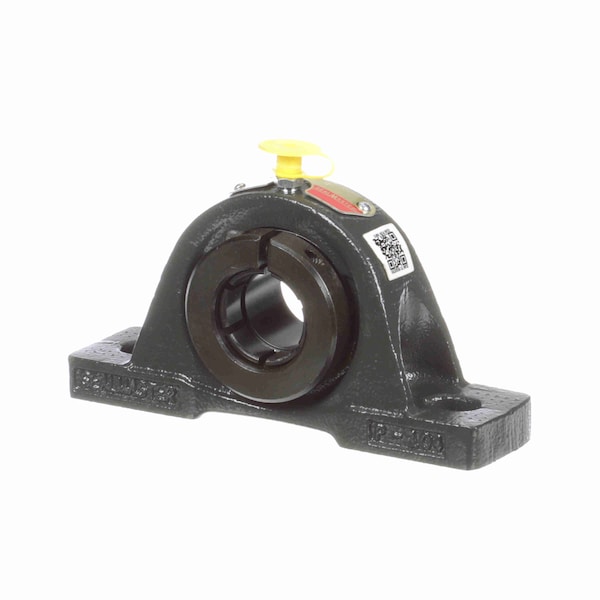

Mounted Cast Iron Two Bolt Pillow Block Ball Bearing, NP-16TC
Mfr # NP-16TC
Zoro # G5002342
Free Shipping & Returns
$133.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bore Dia. 1 in
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Bearing Steel
- Bolt Hole Center-to-Center 3-7/8 in to 4-1/8 in
- Mounting Surface to Shaft Center 1.438 in
Product Information
- Brand Sealmaster
- MFR # NP-16TC
- Zoro # G5002342
- UPC # 662461032701
- Country of Origin United States
- Category Pillow Block Bearings
Dimensions
Bore Dia. | 1 in |
Bolt Size | 3/8 in |
Overall Length | 5-1/2 in |
Overall Height | 2.813 in |
Details
Bearing Housing Material Type | Cast Iron |
Bearing Insert Material | 52100 Bearing Steel |
Bolt Hole Center-to-Center | 3-7/8 in to 4-1/8 in |
Mounting Surface to Shaft Center | 1.438 in |
Temp. Range | Up to 220°F |
Bearing Lubrication | Lithium Complex NLGI 2 Grease |
Max. Speed | 6350 RPM |
Dynamic Load Capacity | 2801 lb |
Finish | Powder Coated |
Locking Type | Concentric |
