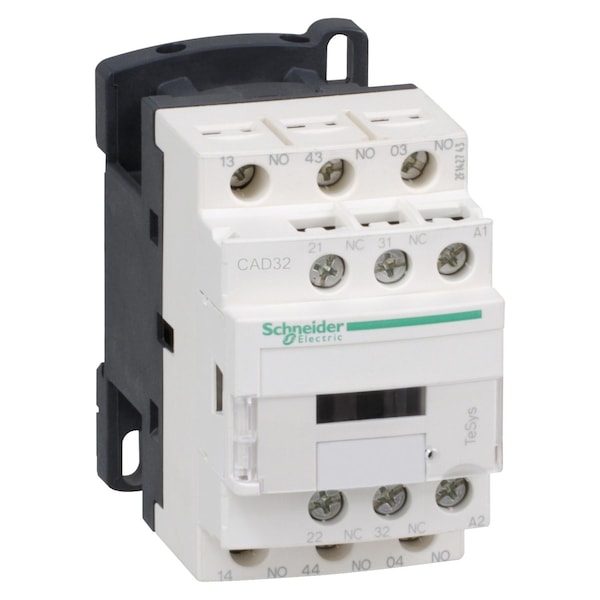

TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 220 V AC standard coil

Mfr # CAD326M7
Zoro # G0847975

$68.35

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Coil Volts 600V
Height 77 mm
Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Depth 84 mm
Width 45 mm

See all product information

Product Information

Brand Schneider Electric
MFR # CAD326M7
Zoro # G0847975
UPC #
785901533467
Country of Origin Indonesia
Category Control Relays

Dimensions

Height	77 mm
Depth	84 mm
Width	45 mm

Details

Coil Volts	600V
Item	Relay 600V 10Amp Tesys +Options
Standards	EN/IEC 60947-5-1 \|\| GB/T 14048.5 \|\| UL 60947-5-1 \|\| CSA C22.2 No 60947-5-1 \|\| JIS C8201-5-1
Control Circuit Type	AC 50/60 Hz
Inrush Power In Va	70-70 VA 50 Hz 20°C)
[Ue] Rated Operational Voltage	<= 690 V AC 25...400 Hz
Range	TeSys \|\| TeSys Deca
Insulation Resistance	> 10 MOhm
Protective Treatment	TH IEC 60068
Device Short Name	CAD
[Uc] Control Circuit Voltage	220 V AC 50/60 Hz
Product Certifications	CB Scheme \|\| CCC \|\| UL \|\| CSA \|\| EAC \|\| CE \|\| UKCA
Maximum Operating Rate	180 cyc/mn
Mounting Support	plate \|\| rail
Ip Degree Of Protection	IP2X front face VDE 0106
Non-Overlap Time	1.5 ms on energisation between NC and NO contact \|\| 1.5 ms on de-energisation between NC and NO contact
Operating Time	12...22 ms coil energisation and NO closing \|\| 4...12 ms coil de-energisation and NO opening \|\| 4...19 ms coil energisation and NC opening \|\| 6...17 ms coil de-energisation and NC closing
Operating Altitude	0...9842.52 ft (0...3000 m)
Minimum Switching Voltage	17 V
Mechanical Durability	30 Mcycles
Mechanical Robustness	shocks control relay open10 Gn for 11 ms IEC 60068-2-27 \|\| shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 \|\| vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 \|\| vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Connections - Terminals	lugs-ring terminals 8 mm)
[Ui] Rated Insulation Voltage	600 V UL \|\| 600 V CSA \|\| 690 V IEC 60947-5-1
Pole Contact Composition	3 NO + 2 NC
Product Name	TeSys CAD
[Ith] Conventional Free Air Thermal Current	10 A 60°C
Product Or Component Type	control relay
Ambient Air Temperature For Storage	-60-80°C
Minimum Switching Current	5 mA
Irms Rated Making Capacity	140 A AC IEC 60947-5-1 \|\| 250 A DC IEC 60947-5-1
Associated Fuse Rating	10 A gG IEC 60947-5-1
Contactor Application	control circuit
[Icw] Rated Short-Time Withstand Current	100 A - 1 s \|\| 120 A - 500 ms \|\| 140 A - 100 ms
Control Circuit Voltage Limits	0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz \|\| 0.8...1.1 Uc -40-60°C operational AC 50 Hz \|\| 0.85...1.1 Uc -40-60°C operational AC 60 Hz \|\| 1...1.1 Uc 60-70°C operational AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Ambient Air Temperature For Operation	-40-60°C \|\| 60-70°C with derating
Hold-In Power Consumption In Va	8-8 VA 50 Hz 20°C)
Utilisation Category	AC-14 \|\| AC-15 \|\| DC-13

Description

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V AC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
