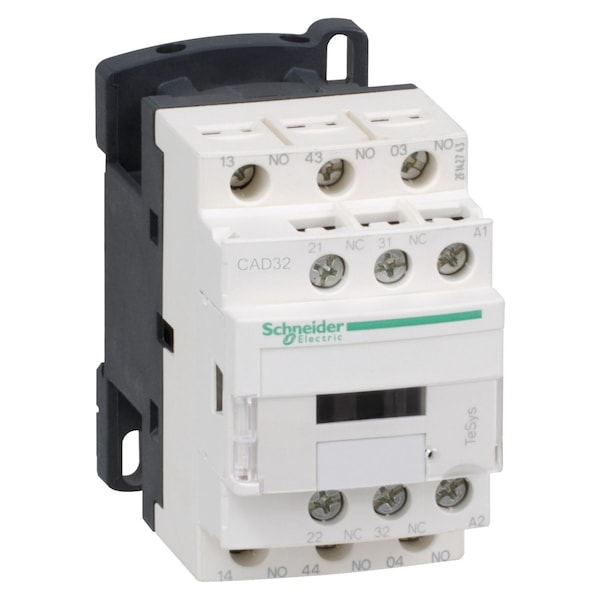

TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 110 V DC standard coil

Mfr # CAD32FD
Zoro # G0847878

$121.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Coil Volts 600V
Depth 93 mm
Width 45 mm
Height 77 mm
Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

See all product information

Product Information

Brand Schneider Electric
MFR # CAD32FD
Zoro # G0847878
UPC #
785901204831
Country of Origin Indonesia
Category Control Relays

Dimensions

Depth	93 mm
Width	45 mm
Height	77 mm

Details

Coil Volts	600V
Item	Relay 600V 10Amp Tesys + Options
Standards	EN/IEC 60947-5-1 \|\| GB/T 14048.5 \|\| UL 60947-5-1 \|\| CSA C22.2 No 60947-5-1 \|\| JIS C8201-5-1
Ambient Air Temperature For Operation	-40-60°C \|\| 60-70°C with derating
Associated Fuse Rating	10 A gG IEC 60947-5-1
Connections - Terminals	screw clamp terminals 1 1-4 mm²flexible without cable end \|\| screw clamp terminals 2 1-4 mm²flexible without cable end \|\| screw clamp terminals 1 1-4 mm²flexible with cable end \|\| screw clamp terminals 2 1-2.5 mm²flexible with cable end \|\| screw clamp terminals 1 1-4 mm²solid without cable end \|\| screw clamp terminals 2 1-4 mm²solid without cable end
Tightening Torque	1.2 N.m screw clamp terminals Philips No 2 \|\| 1.2 N.m screw clamp terminals flat Ø 6 mm \|\| 1.2 N.m screw clamp terminals pozidriv No 2
[Uc] Control Circuit Voltage	110 V DC
Ip Degree Of Protection	IP2X front face VDE 0106
Control Circuit Type	DC standard
Pole Contact Composition	3 NO + 2 NC
Mechanical Robustness	shocks control relay open10 Gn for 11 ms IEC 60068-2-27 \|\| shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 \|\| vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 \|\| vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Mounting Support	rail \|\| plate
Non-Overlap Time	1.5 ms on energisation between NC and NO contact \|\| 1.5 ms on de-energisation between NC and NO contact
Hold-In Power Consumption In W	5.4-5.4 W 20°C
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Range	TeSys \|\| TeSys Deca
Product Certifications	CB Scheme \|\| CCC \|\| UL \|\| CSA \|\| EAC \|\| CE \|\| UKCA
Irms Rated Making Capacity	140 A AC IEC 60947-5-1 \|\| 250 A DC IEC 60947-5-1
Operating Time	53...72 ms coil energisation and NO closing \|\| 16...24 ms coil de-energisation and NO opening \|\| 47...63 ms coil energisation and NC opening \|\| 15...25 ms coil de-energisation and NC closing
Maximum Operating Rate	180 cyc/mn
[Ui] Rated Insulation Voltage	600 V UL \|\| 600 V CSA \|\| 690 V IEC 60947-5-1
Utilisation Category	AC-15 \|\| DC-13 \|\| AC-14
[Ith] Conventional Free Air Thermal Current	10 A 60°C
Inrush Power In W	5.4-5.4 W 20°C)
Control Circuit Voltage Limits	0.1...0.25 Uc -40-70°C drop-out DC \|\| 0.7...1.25 Uc -40-60°C operational DC \|\| 1...1.25 Uc 60-70°C operational DC
Minimum Switching Voltage	17 V
Insulation Resistance	> 10 MOhm
[Ue] Rated Operational Voltage	<= 690 V AC 25...400 Hz
Product Name	TeSys CAD
Device Short Name	CAD
Mechanical Durability	30 Mcycles
Ambient Air Temperature For Storage	-60-80°C
Operating Altitude	0...9842.52 ft (0...3000 m)
Minimum Switching Current	5 mA
Protective Treatment	TH IEC 60068
Product Or Component Type	control relay
Time Constant	28 ms
[Icw] Rated Short-Time Withstand Current	100 A - 1 s \|\| 120 A - 500 ms \|\| 140 A - 100 ms
Contactor Application	control circuit
