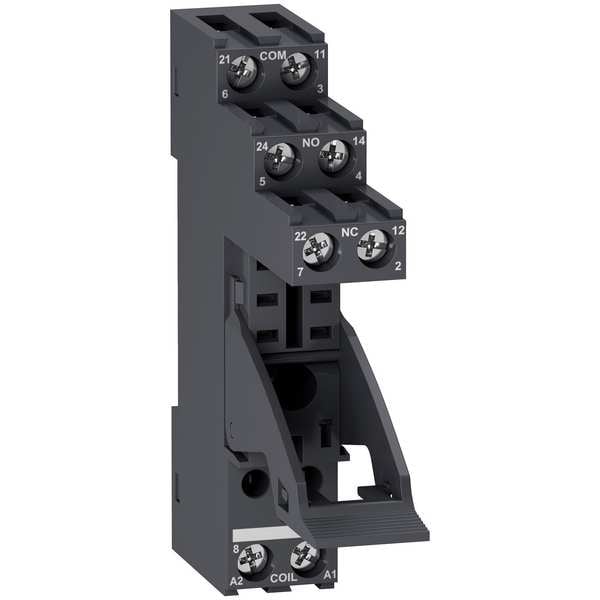

Socket 250VAC, 10A For Rxg2 Relay, PK10

Mfr # RGZE1S48M
Zoro # G1012409

$5.99

/pk 10, $0.60/ea

Sold in multiples of 10 for $59.90

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Socket Type - Relay Standard
Base Style - Relay Socket Square
Contact Form - Relay Socket DPDT
Mounting - Relay Plug In
Electrical Connection - Relay Socket Screw

See all product information

Product Information

Brand Schneider Electric
MFR # RGZE1S48M
Zoro # G1012409
Country of Origin China
Category Relay Sockets

Dimensions

Width	0.62 in
Depth - Relay Socket	3.03 in
Width - Relay Socket	0.62 in
Depth	2.87 in
Height - Relay Socket	2.44 in
Height	3.05 in
Flat Pin Width	0.09 in

Details

Item - Relay	Relay Socket
Socket Type - Relay	Standard
Base Style - Relay Socket	Square
Contact Form - Relay Socket	DPDT
Mounting - Relay	Plug In
Electrical Connection - Relay Socket	Screw
Number of Pins - Relay	8
Socket Code	K
Contact Rating - Relay Socket	5A @ 250V AC
Color	Black
Item	Relay Socket
Socket Type	Elevator, Finger Safe
Number of Pins	8
Standards	CE Certified, CSA Certified, DNV-GL, EAC, UL Listed
Status Indicator	None
Minimum Operating Temperature	-40 Degrees F
IP Rating	IP20
Electrical Connection	Screw
Contact Terminal Arrangement	Separate
Maximum Operating Temperature	158 Degrees F
Contact Rating (AC)	5 A @ 250V
Current Rating	5 A
Contact Form	DPDT
Base Style	Square
Pin Shape	Flat
Number of Terminals	8
Mounting Style	DIN Rail
Compatible Relays	Harmony(TM) RXG Series
[Ue] Rated Operational Voltage	250 V IEC \|\| 300 V UL
Product Compatibility	plug-in relay RXG 2 C/O
Pollution Degree	3
Ambient Air Temperature For Storage	-40-85Â°C
Ip Degree Of Protection	IP20
Ambient Air Temperature For Operation	-40-70Â°C
[Ui] Rated Insulation Voltage	250 V
Screw Type	M3
Connections - Terminals	screw terminals, 1 x 0.25...1 x 2.5 mmÂ² AWG 22...AWG 14) flexible with cable end \|\| screw terminals, 2 x 0.25...2 x 1 mmÂ² AWG 22...AWG 17) flexible with cable end \|\| screw terminals, 2 x 0.5...2 x 1.5 mmÂ² AWG 20...AWG 16) solid without cable end \|\| screw terminals, 1 x 0.5...1 x 2.5 mmÂ² AWG 20...AWG 14) solid without cable end
[Uimp] Rated Impulse Withstand Voltage	6 kV between coil and contact with reinforced insulation \|\| 4 kV between contacts with basic insulation \|\| 4 kV between poles with basic insulation \|\| 4 kV between terminals and DIN rail with basic insulation
Overvoltage Category	III
Product Or Component Type	socket
Dielectric Strength	5 kV between coil and contact with reinforced insulation \|\| 2.5 kV between contacts with basic insulation \|\| 3 kV between poles with basic insulation \|\| 3 kV between terminals and DIN rail with basic insulation
Relative Humidity	10-85 %
Product Certifications	EAC \|\| CE \|\| CSA \|\| UL \|\| DNV-GL
Line Rated Current	5A

Description

Relay Socket, Base Style Square, Contact Form DPDT, Current Rating 5 A, Electrical Connection Screw, Flat Pin Width 0.09 in, Number of Pins 8, Number of Terminals 8, Pin Shape Flat, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color Black, Compatible Relays Harmony(TM) RXG Series, Contact Rating (AC) 5 A @ 250V, Depth 2.87 in, Height 3.05 in, IP Rating IP20, Maximum Operating Temperature 158 Degrees F
