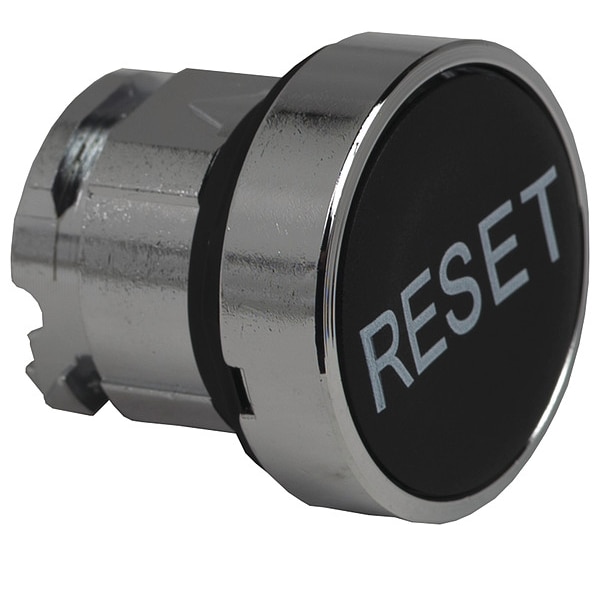

Push-Button, 22 mm, Black

Mfr # ZB4BA222
Zoro # G3465884

$21.35

22% off

$16.65

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Action Momentary
Size 22 mm
Legend/Background Color Gray/Black
Head Material Metal
NEMA Rating 13, 4X

See all product information

Product Information

Brand Schneider Electric
MFR # ZB4BA222
Zoro # G3465884
UPC #
785901596127
Country of Origin France
Category Push Button Switches

Dimensions

Size	22 mm
Mounting Diameter	22 mm
Manufacturer Warranty Length	18 mo
Panel Cutout Diameter	22 mm

Details

Action	Momentary
Legend/Background Color	Gray/Black
Head Material	Metal
NEMA Rating	13, 4X
Type of Operator	Flush Button
Color	Black
Legend	Reset
Number of Operators	1
Item	Flush Push Button
Bezel Material	Metal
Basic Material	Metal
Features	Snap-Fit Assembly, Clear Boot
Standards	Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Series	XB4
IP Rating	IP66, IP67, IP69, IP69K
Product Type	Push Button Operators
Shape Of Signaling Unit Head	round
Ambient Air Temperature For Storage	-40-70Â°C
Protective Treatment	TH
Ik Degree Of Protection	IK06 IEC 50102
Product Certifications	UL Listed \|\| LROS (Lloyds register of shipping) \|\| DNV \|\| CSA \|\| GL \|\| BV
Overvoltage Category	class I IEC 60536
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 \|\| IP69 \|\| IP69K
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation	-40-70Â°C
Head Type	standard
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
Product Or Component Type	head for non-illuminated push-button
Mechanical Durability	10000000 cycles
Device Short Name	ZB4
Operator Profile	flush, RESET
Push Button Style	Flush
Hazardous Location Specification	Not Rated
Number of Indicator Lights	0
Operator Illumination	Non-Illuminated
Operating Temperature - Minimum	-40 Degrees F
Resistance Properties	Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating	1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Maximum	158 Degrees F
Legend Background Color	Black
Legend Color	Gray
Head Color	Black
Operator Material	Metal

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Black, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Reset, Legend/Background Color Gray/Black

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
