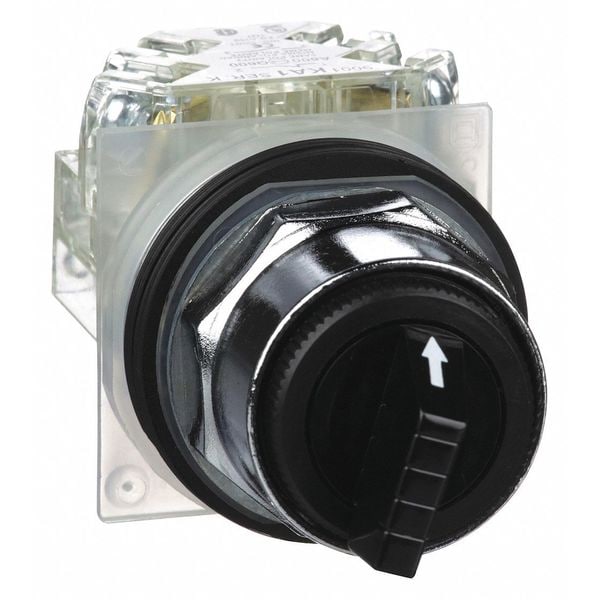

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

Mfr # 9001KS43BH13
Zoro # G1679142

$102.40

7% off

$94.39

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Size 30 mm
Basic Material Metal
Type of Operator Lever
Action Maintained/Maintained/Maintained
Contact Form 1NC, 1NO

See all product information

Product Information

Brand Schneider Electric
MFR # 9001KS43BH13
Zoro # G1679142
UPC #
785901821335
Country of Origin Mexico
Category Selector Switches

Dimensions

Size	30 mm
Mounting Diameter	30 mm
Manufacturer Warranty Length	18 mo
Panel Cutout Diameter	30 mm

Details

Item	Selector Switch
Basic Material	Metal
Type of Operator	Lever
Action	Maintained/Maintained/Maintained
Contact Form	1NC, 1NO
Operator Head Material	Polycarbonate
Cam	C
Color	Black
NEMA Rating	12, 13, 3, 3R, 4
Bezel Material	Metal
Position	3
Bezel Color	Chrome
Key Removal	No Key
Switch Operation @ Position D	No Fourth Position
Contact Rating	10A @ 600V AC
IP Rating	IP66
NEMA Contact Rating Designation	A600/Q600
Standards	CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position C	XO
Switch Operation @ Position B	OO
Switch Operation @ Position A	OX
DC Contact Rating	0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series	9001K
AC Contact Rating	1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Cam Profile	3
Cap/Operator Or Lens Colour	black
Device Presentation	complete product
Operator Position Information	3 positions
Product Or Component Type	selector switch
Connections - Terminals	screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mmÂ² IEC 60947-1
Product Certifications	CE \|\| CSA LR24590 class 3211 03 \|\| UL listed file E42259 CCN NKCR
Operator Profile	standard handle, black standard knob
Product Compatibility	9001KA1 side 2
Device Short Name	K
Contacts Type And Composition	1 C/O
Nema Degree Of Protection	NEMA 1/2/3/3R/4/6/12/13
Switch Function @ 1st Position	On
Number of Positions	3
Switch Function @ 2nd Position	Off
Operator Head Color	Black
Switch Function @ 3rd Position	On
NEMA Enclosure Rating	1, 12, 13, 2, 3, 3R, 4
Contact Block Material	Metal
Switch Function @ 4th Position	No Fourth Position
Operator Illumination	Non-Illuminated
Hazardous Location Specification	Not Rated
Operator Head Type	Short-Handled Knob

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 1NC, 1NO Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP66, Cam C, Switch Operation @ Position A OX, Switch Operation @ Position B OO, Switch Operation @ Position C XO
