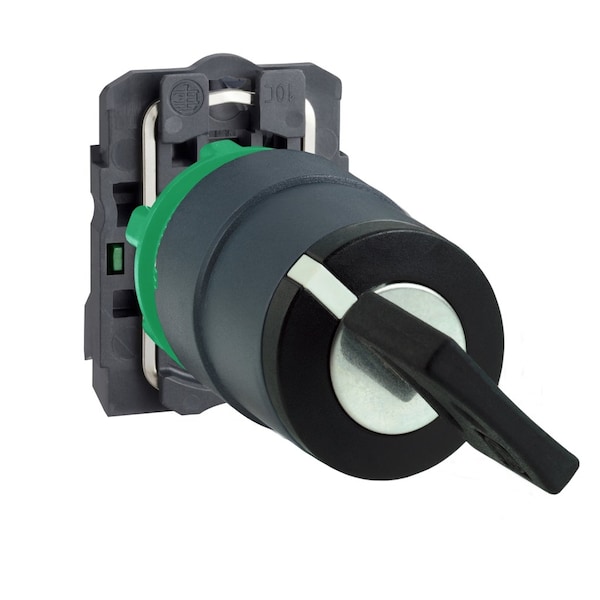

Non-Illum Selector Switch, 1NO, SS, 22mm

Mfr # XB5AG21
Zoro # G2772174

$107.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Size 22 mm
Basic Material Plastic
Type of Operator Keyed
Action Maintained/Maintained
Contact Form 1NO

See all product information

Product Information

Brand Schneider Electric
MFR # XB5AG21
Zoro # G2772174
UPC #
785901383697
Country of Origin France
Category Selector Switches

Dimensions

Size	22 mm
Width	30 mm
Depth	96 mm
Height	42 mm
Mounting Diameter	22 mm
Overall Height	1.65 in
Manufacturer Warranty Length	18 mo
Overall Depth	3.78 in
Panel Cutout Diameter	22 mm
Overall Width	1.18 in

Details

Item	Selector Switch
Basic Material	Plastic
Type of Operator	Keyed
Action	Maintained/Maintained
Contact Form	1NO
Operator Head Material	Metal
Cam	No Cam Included
Color	Chrome
NEMA Rating	1, 12, 13, 2, 3, 4, 4X
Position	2
Bezel Material	Plastic
Bezel Color	Black
Key Removal	Left
Switch Operation @ Position B	X
Switch Operation @ Position D	No Fourth Position
IP Rating	IP66, IP67, IP69, IP69K
Switch Operation @ Position C	No Third Position
Standards	BV, CSA, DNV, GL, LROS, UL Listed
Contact Rating	10A @ 600V AC
NEMA Contact Rating Designation	B600/Q600
Includes	Key
Switch Operation @ Position A	O
AC Contact Rating	1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Series	XB5
DC Contact Rating	0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Material	silver alloy (Ag/Ni)
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN/IEC 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Electrical Shock Protection Class	class II IEC 60536
Ik Degree Of Protection	IK06 IEC 50102
Device Short Name	XB5
Key Withdrawal Position	left-hand
Mechanical Durability	1000000 cycles
[Ui] Rated Insulation Voltage	600 V 3)EN 60947-1
Positive Opening	without
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Type Of Keylock	key 455
Ip Degree Of Protection	IP69 \|\| IP69K \|\| IP66 IEC 60529 \|\| IP67
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contacts Type And Composition	1 NO
Operator Position Information	2 positions 90Â°
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Reliability	Î» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 \|\| Î» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
[Uimp] Rated Impulse Withstand Voltage	6 kV EN 60947-1
Operator Profile	key switch
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ã˜ 4 mm \|\| slotted flat Ã˜ 5.5 mm
Ambient Air Temperature For Storage	-40-70Â°C
Protective Treatment	TH
Terminals Description Iso N°1	(13-14)NO
Contact Operation	slow-break
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Torque Value	0.14 N.m NO changing electrical state
Product Or Component Type	selector switch
Ambient Air Temperature For Operation	-40-70Â°C
Head Type	standard
Shape Of Signaling Unit Head	round
Contacts Usage	standard contacts
Device Presentation	complete product
Resistance To High Pressure Washer	7000000 Pa 55Â°C 0.1 m
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
Tightening Torque	0.8-1.2 N.m EN 60947-1
Product Certifications	LROS (Lloyds register of shipping) \|\| CSA \|\| DNV \|\| GL \|\| BV \|\| UL
Terminals Description Iso NÂ°1	(13-14)NO
Includes Operator Key	Key Included
Switch Function @ 4th Position	No Fourth Position
Operator Illumination	Non-Illuminated
Number of Positions	2
Key Removal Position	Left
NEMA Enclosure Rating	1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 1st Position	Off
Contact Block Material	Plastic
Switch Function @ 2nd Position	On
Operator Head Type	Keyed
Hazardous Location Specification	Not Rated
Operator Head Color	Black
Switch Function @ 3rd Position	No Third Position

Description

Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, 1NO Contact Form, Type of Operator Keyed, Color Chrome, Left Key Removal, Operator Head Material Metal, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation B600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position A O, Switch Operation @ Position B X
