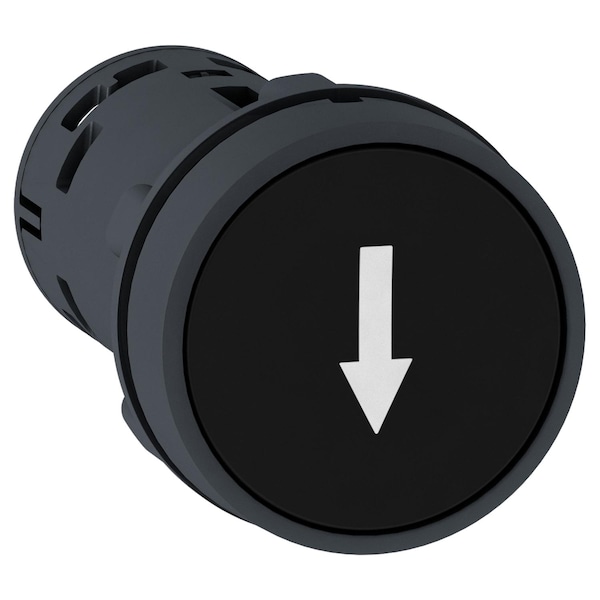

Monolithic push button, Harmony XB7, plastic, black, 22mm, spring return, marked DOWN ARROW, 1NO

Mfr # XB7NA21343
Zoro # G300905712

$25.15

Sold in multiples of 10 for $251.50

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Standards EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
Mounting Diameter 22 mm
Nema Degree Of Protection NEMA 12 UL 50 E || NEMA 3 UL 50 E
Protective Treatment TH
[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

See all product information

Product Information

Brand Schneider Electric
MFR # XB7NA21343
Zoro # G300905712
Country of Origin Indonesia
Category Push Button Switches

Dimensions

Mounting Diameter	22 mm
Cad Overall Depth	51.5 mm
Cad Overall Height	29 mm
Cad Overall Width	29 mm

Details

Item	Monolithic push button,plastic,black,
Standards	EN/IEC 60947-1 \|\| JIS C8201-5-1 \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| UL 508 \|\| JIS C8201-1
Nema Degree Of Protection	NEMA 12 UL 50 E \|\| NEMA 3 UL 50 E
Protective Treatment	TH
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-1
Contact Operation	slow-break
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Short-Circuit Protection	4 A cartridge fuse gG EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage	250 V 3)EN/IEC 60947-1
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Terminals Description Iso N°1	(13-14)NO
Mechanical Durability	1000000 cycles
Product Or Component Type	push-button
Tightening Torque	0.8-1.2 N.m EN 60947-1
Shape Of Screw Head	cross JIS No 1 \|\| cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ø 4 mm \|\| slotted flat Ø 5.5 mm
Operator Profile	black flush, down arrow white)
Device Presentation	monolithic product
Electrical Reliability	Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
Fixing Center	>= 30 x 40 mm support panel) metal 1-6 mm \|\| >= 30 x 40 mm support panel) plastic 2-6 mm
Type Of Operator	spring return
Shock Resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 \|\| 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head	round
Product Certifications	CCC \|\| GOST
Device Short Name	XB7
Ambient Air Temperature For Storage	-40-70°C
Contacts Type And Composition	1 NO
[Ie] Rated Operational Current	0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 \|\| 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 \|\| 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 \|\| 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
Ip Degree Of Protection	IP20 IEC 60529 rear face) \|\| IP65 IEC 60529 front face)
Positive Opening	with (only NO)
Device Mounting	fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Electrical Durability	1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
Overvoltage Category	class II IEC 61140
Fixing Mode	fixing nut beneath head 2-2.4 N.m
Ambient Air Temperature For Operation	-25-70°C
Range of Product	Harmony XB7
