Shop All Magnetic Motor Starters
Schneider Electric

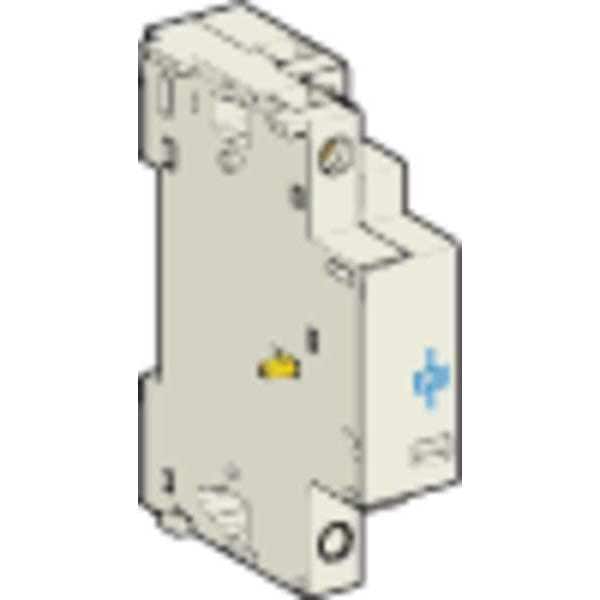

Manstarter Undervoltage Trip 575Vac Iec
Mfr # GVAU116
Zoro # G0561611
original price:
$111.52
23% off
Free Shipping & Returns
$85.65
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 110 to 115V AC
- Features Mercury Free
- Depth 66 mm
- Height 89 mm
- Hz 60 Hz
Product Information
- Brand Schneider Electric
- MFR # GVAU116
- Zoro # G0561611
- UPC # 785901212515
- Country of Origin Czechia
- Category Magnetic Motor Starters
Dimensions
Depth | 66 mm |
Height | 89 mm |
Width | 18 mm |
Details
Item | Manstarter Undervoltage Trip 575Vac Iec |
Coil Volts | 110 to 115V AC |
Features | Mercury Free |
Hz | 60 Hz |
Weight | 0.105 kg |
Inrush Power in VA | 12 VA AC |
Mechanical Durability | 10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P |
Control Circuit Voltage | 110 to 115 V AC 60 Hz |
Operating Time | 10 to 15 ms IEC 60947-1 |
Hold-In Power Consumption in VA | 3.5 VA AC |
Threshold Tripping Voltage | 0.7 to 0.35 Un |
Color | Dark Gray |
Tightening Torque | Less than 1.4 N.m screw clamp terminals |
Rated Insulation Voltage | 690 V AC IEC 60947-1; 600 V AC UL 60947-4-1; 600 V AC CSA C22.2 No 60947-4-1 |
Control Circuit Voltage Limits | 0.85 to 1.1 Un |
Product Or Component Type | Undervoltage release |
Inrush Power in W | 8 W |
Hold-In Power Consumption in W | 1.1 W |
Connections - Terminals | screw clamp terminals 1 0.00 to 0.00 in² (1 to 2.5 mm²)solid; screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)solid; screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 2.5 mm²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 2.5 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²)flexible with cable end; screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²)flexible with cable end |
Range Compatibility | TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca |
On-Load Factor | 1 |
Description
Manstarter Undervoltage Trip 575Vac Iec
