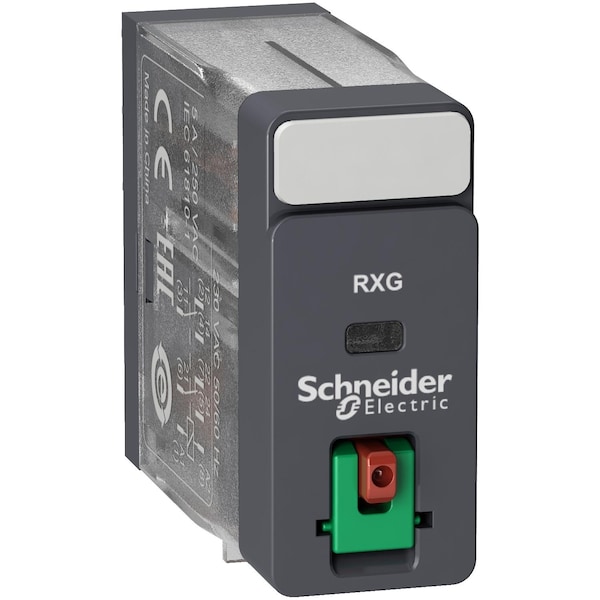

Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 120V AC

Mfr # RXG21F7
Zoro # G1983214

$9.25

Sold in multiples of 10 for $92.50

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Coil Volts 120V AC
DC Contact Rating - Relay 5A @ 30V DC
AC Contact Rating - Relay 5A @ 250V AC
Contact Form - Relay 2 C/O
Power Consumption - Relay 0.82VA

See all product information

Product Information

Brand Schneider Electric
MFR # RXG21F7
Zoro # G1983214
Country of Origin China
Category Power Relays

Details

Item - Relay	Plug-In Relay
Coil Volts	120V AC
DC Contact Rating - Relay	5A @ 30V DC
AC Contact Rating - Relay	5A @ 250V AC
Contact Form - Relay	2 C/O
Power Consumption - Relay	0.82VA
Contact Material	Silver Alloy (AgSnO2In2O3)
Standards	CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Features	Lockable Test Button; Insulation Class F; Flag Local Signalling
Item	Relay,2CO 5A@250VAC,120VAC,Coil Ltb
Protection Category	RT I
Coil Resistance	6300 Ohm +/- 10 %
Mounting Type	any position
Switching Voltage	250 V AC \|\| 30 V DC
Dielectric Voltage	1000 V AC between contacts with micro disconnection \|\| 5000 V AC between coil and contact with reinforced insulation \|\| 3000 V AC between poles with basic insulation
Operating Temp. Range	-40-70°C
Shock Resistance	20 gn in operation; 100 gn not in operation
Drop-Out Voltage Threshold	Greater than or Equal to 0.3 Uc AC
Insulation Resistance	1000 MOhm at 500 V DC
Ambient Air Temperature For Storage	-40 to 185°F (-40 to 85°C)
Utilisation Coefficient	0.2
Dielectric Strength	1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation; 3000 V AC between poles with basic insulation
IP Degree Of Protection	IP40
Product Certifications	EAC; UL; CE; CSA; DNV-GL
Overvoltage Category	III
Status LED	Without
Minimum Switching Capacity	50 mW at 10 mA, 5 V DC
Electrical Insulation Class	Class F
Cover Color	Standard
Operating Time	20 ms
Series Name	Interface relay
Device Presentation	Complete product
Load Current	5 A 250 V AC
Operating Rate	Less than or Equal to 1800 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
Ambient Air Temperature For Operation	-40 to 158°F (-40 to 70°C)
Rated Operational Current	5 A 30 V DC) UL; 5 A 30 V DC) IEC; 5 A 250 V AC) IEC; 5 A 250 V AC) UL
Maximum Switching Voltage	250 V AC; 30 V DC
Test Levels	Level A group mounting
Local Signalling	Flag
Electrical Durability	100000 cycles NO resistive at 55°C; 100000 cycles NC resistive at 55°C
Control Circuit Voltage	120 V AC 50/60 Hz
Vibration Resistance	3 gn +/- 0.75 mm 10 to 150 Hz)in operation; 5 gn +/- 0.75 mm 10 to 150 Hz)not in operation
Control Type	Lockable test button
Control Circuit Voltage Limits	0.8 to 1.1 Uc AC
Conventional Enclosed Thermal Current	5 A -40 to 131°F (-40 to 55°C)
Average Consumption in VA	0.82 VA 60 Hz
Torque Value	7.08 lbf.in (0.8 N.m)
Mechanical Durability	10000000 cycles
Rated Insulation Voltage	250 V IEC; 300 V CSA; 300 V UL
Pollution Degree	2
Contacts Material	Silver alloy (AgSnO2In2O3)
Reset Time	20 ms
Contact Resistance	100 mOhm
Maximum Switching Capacity	1250 VA
Relative Humidity	10 to 85%
[Ie] Rated Operational Current	5 A 30 V DC) UL, 5 A 30 V DC) IEC, 5 A 250 V AC) IEC, 5 A 250 V AC) UL
Device Short Name	RXG
[Ui] Rated Insulation Voltage	250 V IEC, 300 V CSA, 300 V UL
[Ithe] Conventional Enclosed Thermal Current	5 A -40-55°C
Range of Product	Harmony Electromechanical Relays

Description

This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A. It has large choice of number of contacts for high rated current use with space-saving design. It also offers a lockable test button. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0
