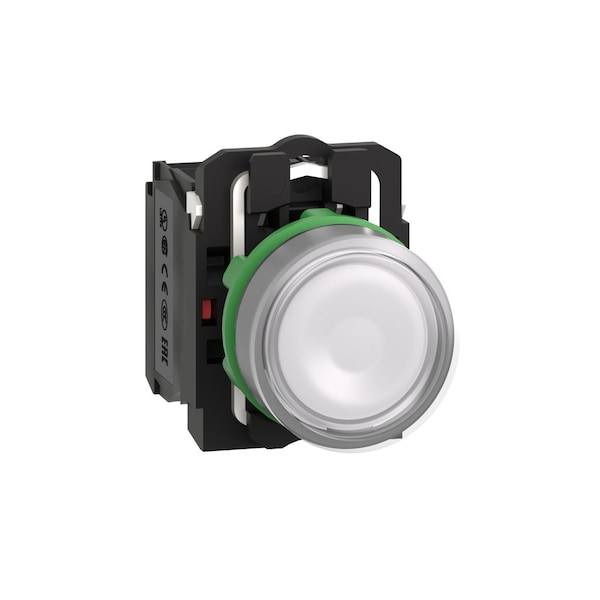

Illuminated push button, Harmony XB5, plastic, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

Mfr # XB5AW31B5
Zoro # G7655839

$104.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Standards EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
Width 30 mm
Depth 57 mm
Height 42 mm
Supply Voltage Limits 19.2-30 V DC || 21.6-26.4 V AC

See all product information

Product Information

Brand Schneider Electric
MFR # XB5AW31B5
Zoro # G7655839
Country of Origin France
Category Push Button Contact Blocks

Dimensions

Width	30 mm
Depth	57 mm
Height	42 mm
Mounting Diameter	22 mm

Details

Item	Pushbutton Led 24V 22MM Xb5B Options
Standards	EN/IEC 60947-1 \|\| UL 508 \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| JIS C8201-5-1 \|\| EN/IEC 60947-5-4 \|\| JIS C8201-1
Supply Voltage Limits	19.2-30 V DC \|\| 21.6-26.4 V AC
Shape Of Signaling Unit Head	round
Operating Travel	1.5 mm NC changing electrical state) \|\| 2.6 mm NO changing electrical state) \|\| 4.3 mm total travel)
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ø 4 mm \|\| slotted flat Ø 5.5 mm
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Bulb Base	integral LED
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 \|\| λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP69 \|\| IP69K \|\| IP67
Resistance To High Pressure Washer	7000000 Pa 55°C 0.1 m
Head Type	standard
Ambient Air Temperature For Storage	-40-70°C
Ambient Air Temperature For Operation	-40-70°C
Contact Operation	slow-break
Operator Additional Information	with plain lens
Ik Degree Of Protection	IK05 IEC 50102
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Electromagnetic Emission	class B IEC 55011
Tightening Torque	0.8-1.2 N.m EN 60947-1
Mechanical Durability	10000000 cycles
Resistance To Electrostatic Discharge	6 kV on contact (on metal parts) IEC 61000-4-2 \|\| 8 kV in free air (in insulating parts) IEC 61000-4-2
Positive Opening	with EN/IEC 60947-5-1 appendix K
Product Certifications	GL \|\| DNV \|\| CSA \|\| BV \|\| UL Listed \|\| LROS (Lloyds register of shipping)
Product Or Component Type	illuminated push-button
Service Life	100000 h at rated voltage and 25°C
Terminals Description Iso N°1	(13-14)NO \|\| (21-22)NC
Contacts Type And Composition	1 NO + 1 NC
Fixing Collar Material	plastic
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Protective Treatment	TH
Type Of Operator	spring return
Operating Force	3.5 N NC changing electrical state \|\| 3.8 N
[Ui] Rated Insulation Voltage	600 V 3)EN/IEC 60947-1
Light Source	universal LED
Device Presentation	complete product
Contacts Usage	standard contacts
Overvoltage Category	class II IEC 60536
Surge Withstand	1 kV IEC 61000-4-5
Device Short Name	XB5
Bezel Material	dark grey plastic
[Us] Rated Supply Voltage	24 V AC/DC 50/60 Hz
Current Consumption	18 mA
Cap/Operator Or Lens Colour	white
Operator Profile	white flush, unmarked
Contacts Material	silver alloy (Ag/Ni)
Resistance To Fast Transients	2 kV IEC 61000-4-4
Signalling Type	steady
Range of Product	Harmony XB5

Description

This Harmony XB5, illuminated modular white push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
