  11. Head for selector switch, Harmony XB6, black square Ø 16 3 position spring return
Shop All Selector Switches
Schneider Electric

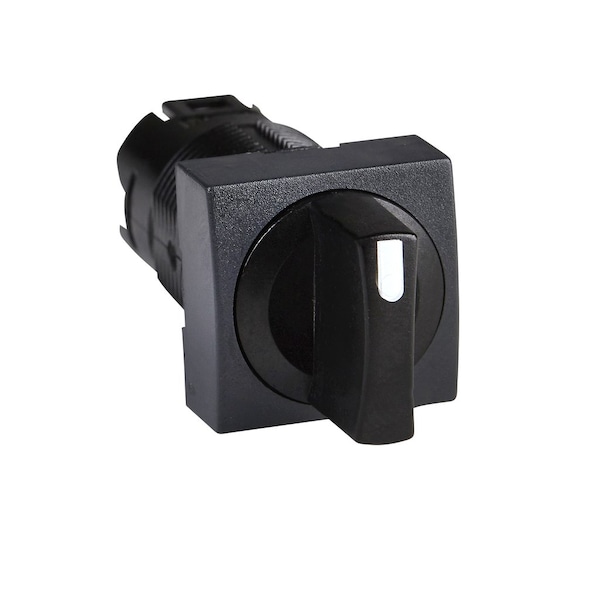

Head for selector switch, Harmony XB6, black square Ø 16 3 position spring return

product price: $17.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bezel Material plastic
  • Standards UL 508 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
  • Product Certifications CCC || CSA || UL || GOST
  • Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Ambient Air Temperature For Storage -40-70°C
See all product information

Product Information

Dimensions

Mounting Diameter 16 mm
Cad Overall Height 18 mm
Cad Overall Depth 43 mm
Cad Overall Width 18 mm

Details

Item Black square selector switch head 016 3-
Bezel Material plastic
Standards UL 508 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Product Certifications CCC || CSA || UL || GOST
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage -40-70°C
Operator Position Information 3 positions 45°
Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment TC
Device Short Name ZB6
Product Or Component Type head for selector switch
Type Of Operator to centre spring return
Electrical Shock Protection Class class II IEC 61140
Operator Profile black standard handle
Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Ambient Air Temperature For Operation -25-70°C
Ip Degree Of Protection IP65 IEC 60529
Shape Of Signaling Unit Head square
Range of Product Harmony XB6

Description

This Harmony ZB6CD25 is a black square selector switch head, 3-position spring return. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
