Schneider Electric

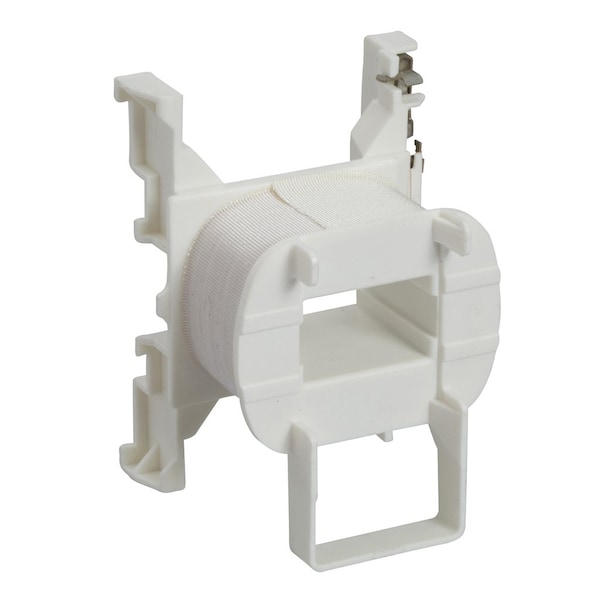

Contactor coil, TeSys Deca, LXD1, 48V AC 50/60Hz for 9...38A contactor
Mfr # LXD1E7
Zoro # G0850145
$39.15
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Inrush Power In Va 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C)
- Product Compatibility LC1DT20 to DT40 || LC1D09 to D38 || CAD
- Ambient Air Temperature For Operation -5-60 °C
- Mechanical Durability 15 Mcycles
- Inductance Of Closed Circuit 0.87 H
Product Information
- Brand Schneider Electric
- MFR # LXD1E7
- Zoro # G0850145
- UPC # 785901214045
- Country of Origin France
- Category Replacement Coils
Details
Item | Contactor Coil 48V Ac Iec |
Inrush Power In Va | 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C) |
Product Compatibility | LC1DT20 to DT40 || LC1D09 to D38 || CAD |
Ambient Air Temperature For Operation | -5-60 °C |
Mechanical Durability | 15 Mcycles |
Inductance Of Closed Circuit | 0.87 H |
[Uc] Control Circuit Voltage | 48 V AC 50/60 Hz |
Control Circuit Type | AC 50/60 Hz |
Coil Technology | without built-in suppressor module |
Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C) |
Heat Dissipation | 2-3 W 50/60 Hz |
Maximum Operating Rate | 3600 cyc/h 60 °C |
Product Or Component Type | contactor coil |
Average Resistance | 21.7 Ohm 20 °C |
Device Short Name | LXD1 |
Range | TeSys |
Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C) |
Pvc Free | Yes |
Description
TeSys D replacement coil 48V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).
